Smar 4CH CCTV Surveillance Kit 720P/1080P Security Camera System 4CH CCTV NVR With 2PCS 1MP/2MP IP Camera eSATA/TF/USB Storage

Note:

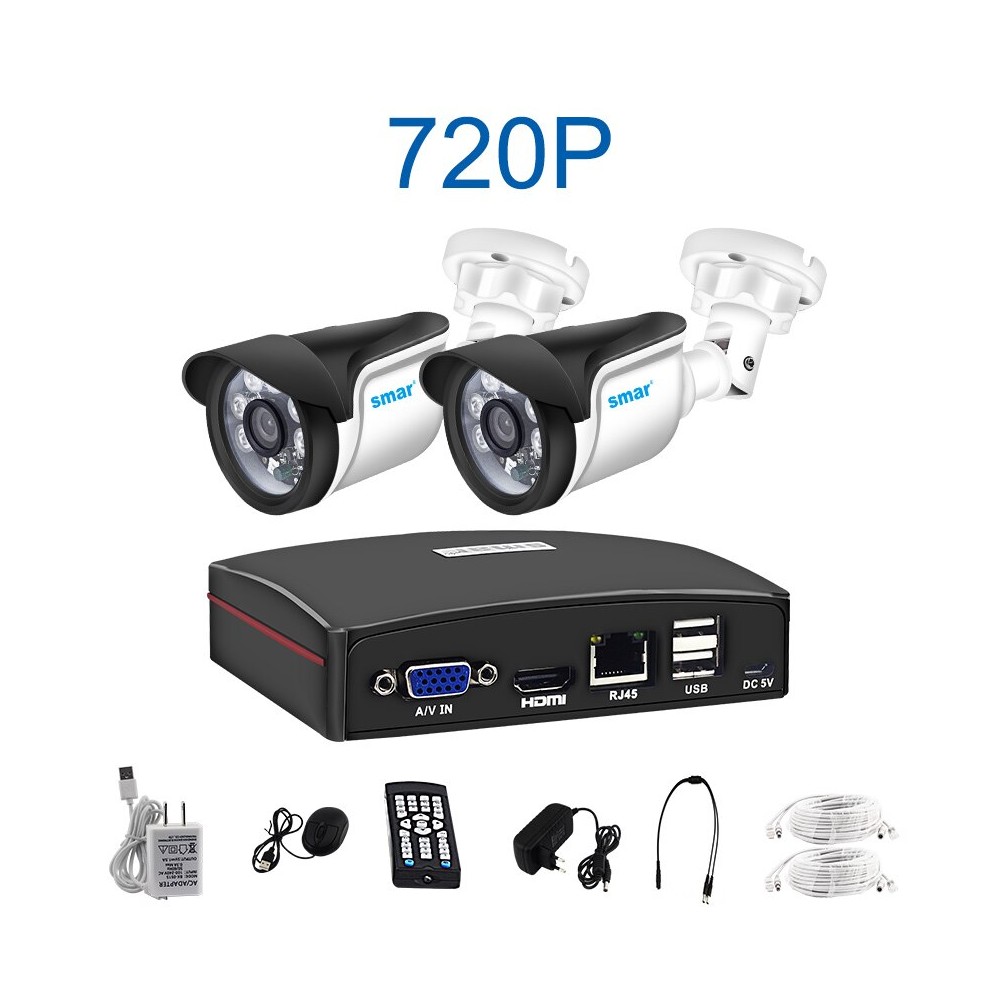

1.Blue=720P IP Camera Kits; ( Blue is Not the Color of the IP Camera/NVR )

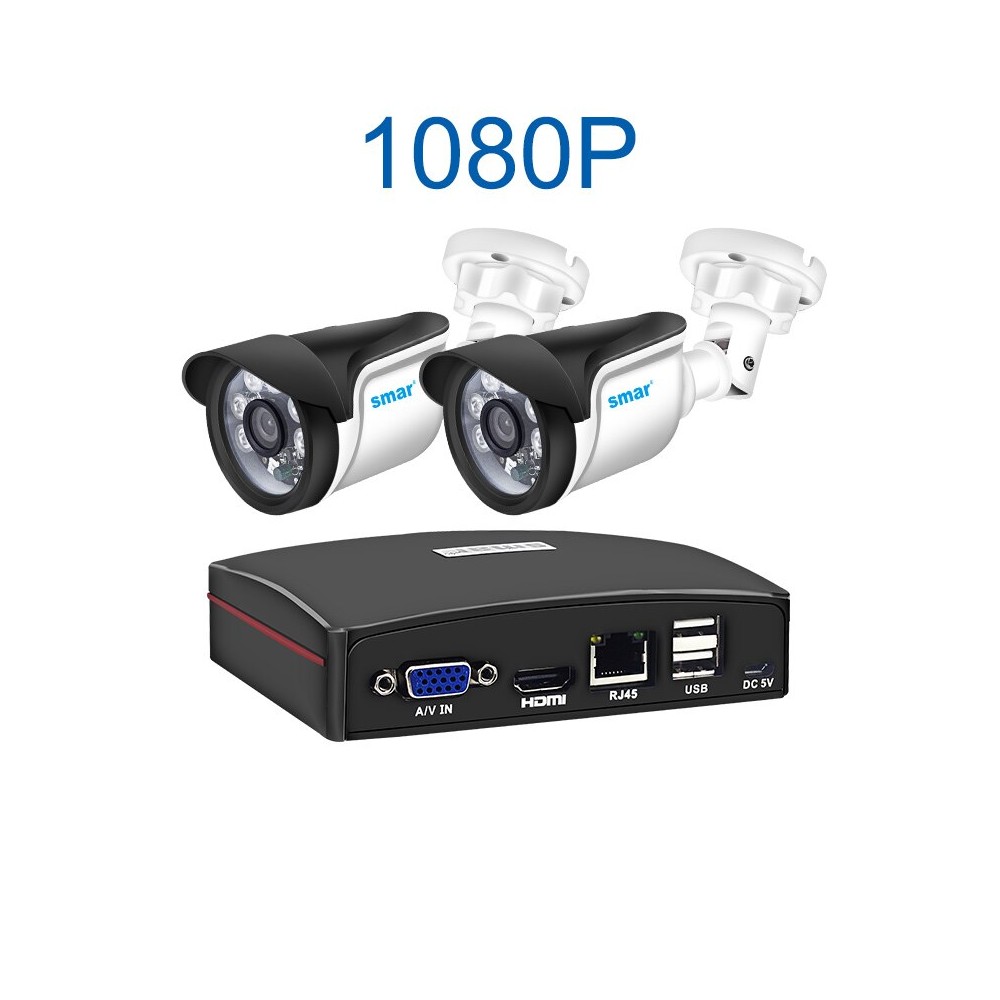

2.Green=1080P IP Camera Kits; (Green is Not the Color of the IP Camera/NVR )

3.Black=720P IP Camera Kits With Network Cable; (Black is not the color of the IP Camera/NVR)

4.Yellow=1080P IP Camera Kits With Network Cable; (Yellow is not the color of the IP Camera/NVR)

5. For the PAL or NTSC .we will send it according to different countries.

​

4CH NVR Specification

Video compression: H.265/H.264

Video Input(IP): 4*5M/8*4M

Decod: 1*5M /1*4M

Playback Quality: 1080P

Video output: 1CH VGA, 1CH HDMI

Recording , Playback , Backup resolution: 1080P

USB: 2x USB 2.0

HDD: 1*eSATA port + 1*USB Two-in-One Port(Max 6TB/per)

TF Card: 1*TF card port(Max 128G Class10 98KB/S)

Power Supply: DC5V/1.5A(if you use more than 2tb hdd, please change 5V/4A or more adaptor by yourself)

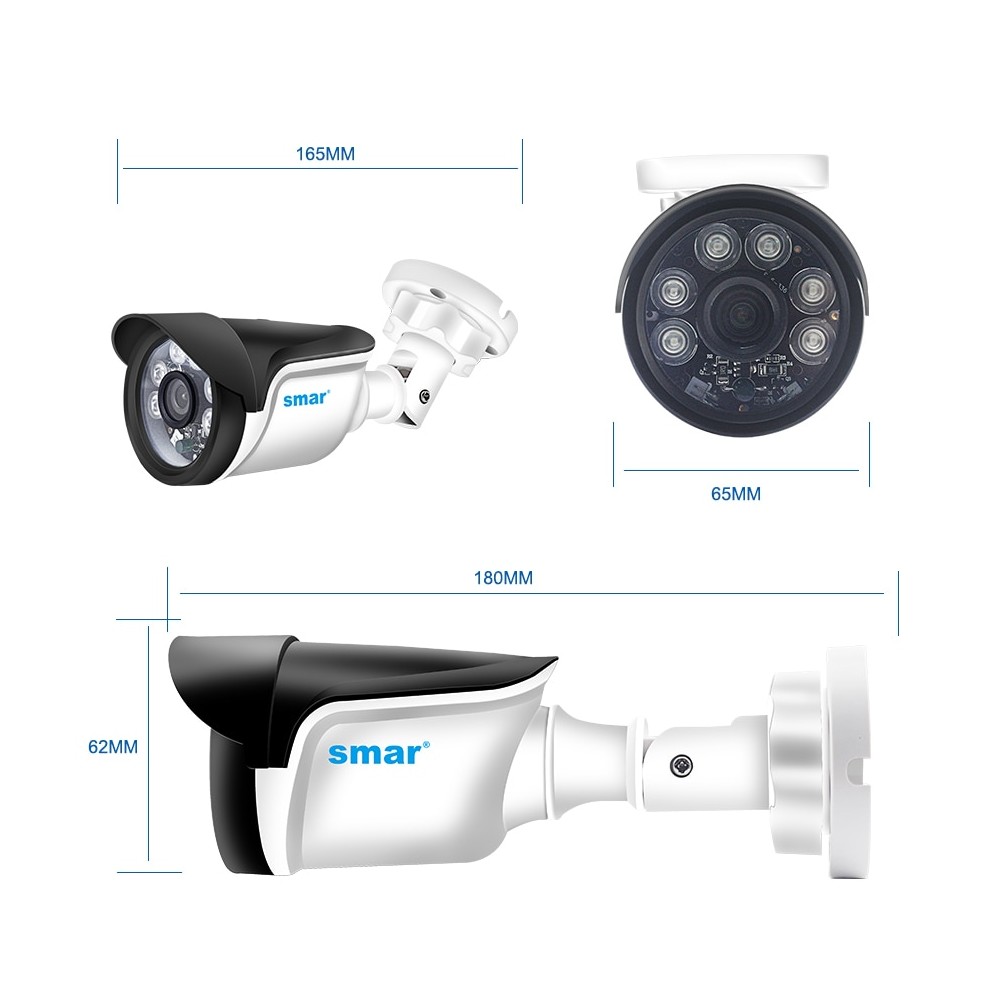

720P/1080P IP Camera Specification

Image Sensor:1/4 inch H62 CMOS Sensor With ICT For 720P,1/2.7ihch 2135 CMOS Sensor with ICR for 1080P

Effective Pixel:1280*720P(25FPS), 1920*1280(20FPS)

Lens: Megapixel 3.6mm

Number of IR LEDs:6 pcs Array IR lEDs

Night Vision:15-25m IR Distance

Shell Material: High Quality Plastic Shell

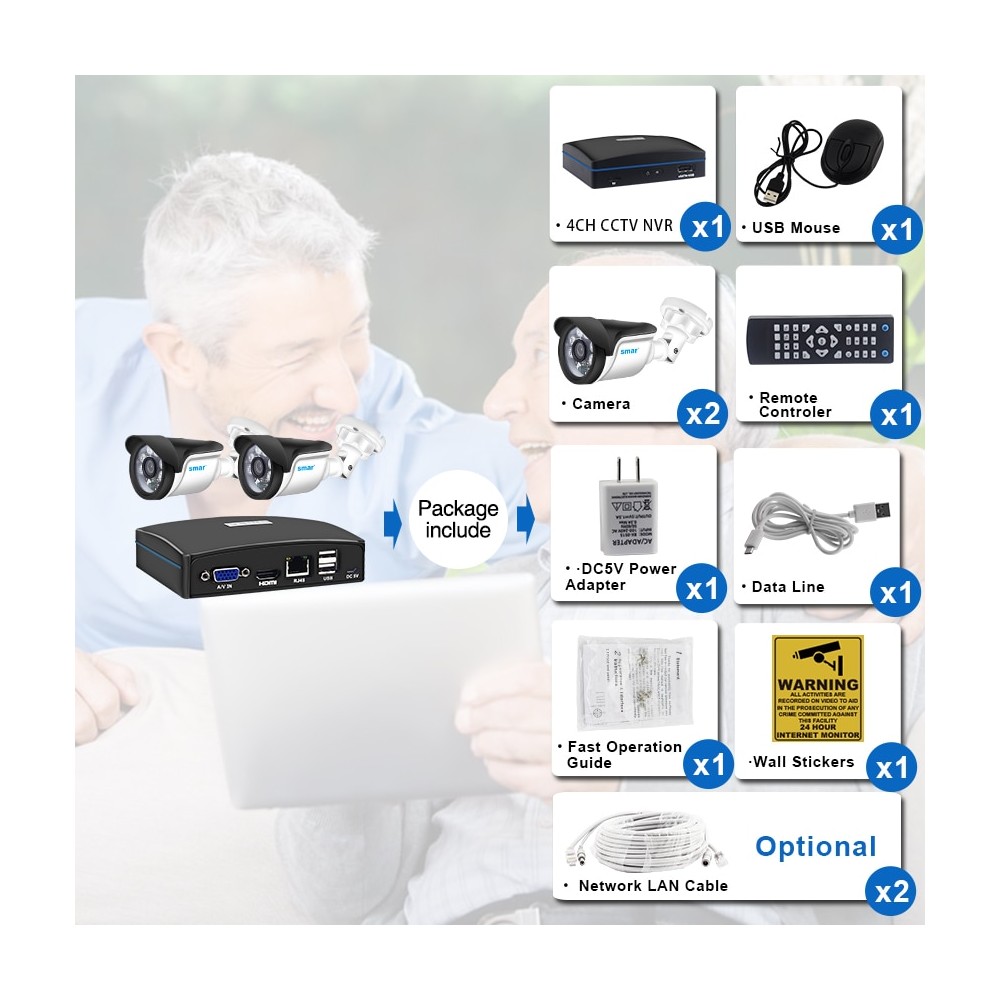

Package List:

1 * 4CH NVR (HDD/TF Card not include)

1 * DC5V Power Supply for NVR

1 * USB Mouse

1 * Remote Controler

1 * Fast Operation Guide

2 * 720P/1080P IP Cameras

1 * Warning Sticker(gift)

2 * Network Cable ( Optional)

Experience with 720P & 1080P HD System

Ideal for home or business -720P(1280 x 720) / 1080P(1920 x 1280) offers exceptional Full HD resolution and quality enhancing efficiency and monitoring capabilities.

Simplify installation and Use

This IP Camera work with one network cable+ one Power adapter to provide power supply and transmit video signals. Please connect IP Camera to Router or Switch. then connect to NVR. then you can use them.

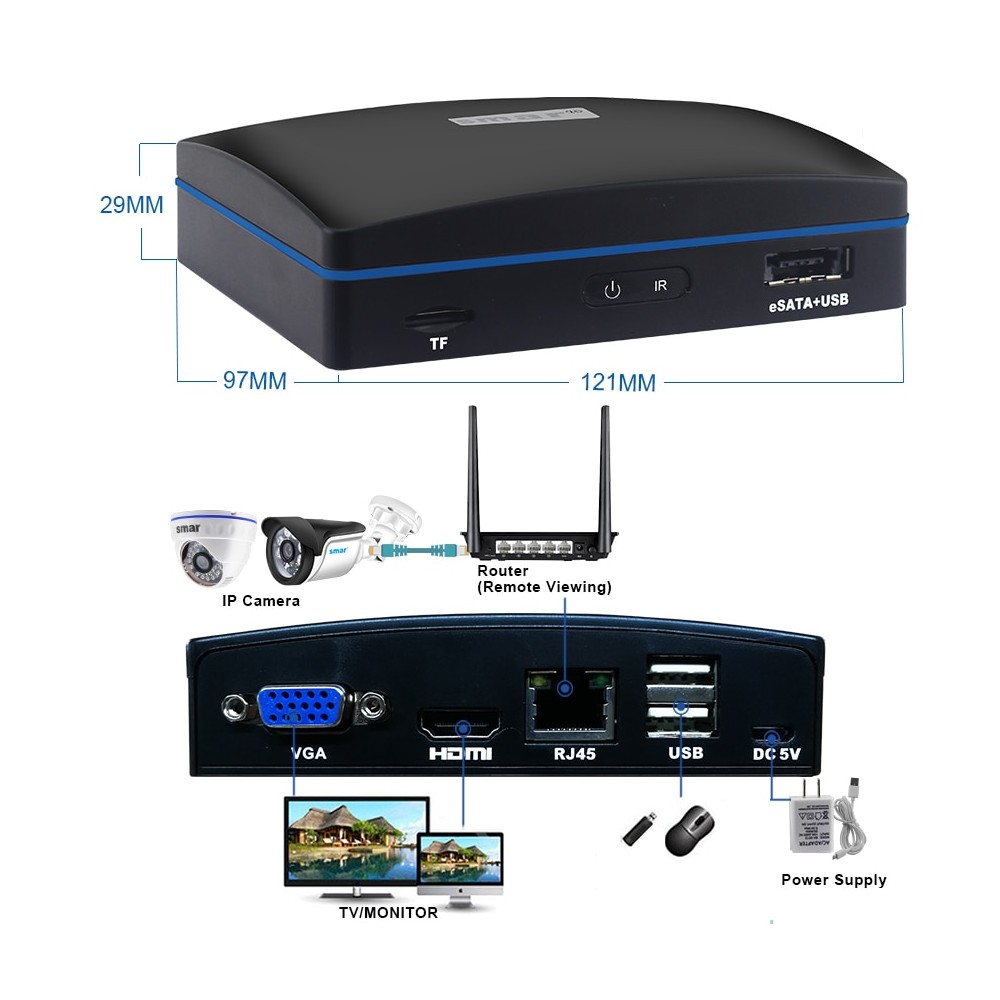

Network System Installation Diagram

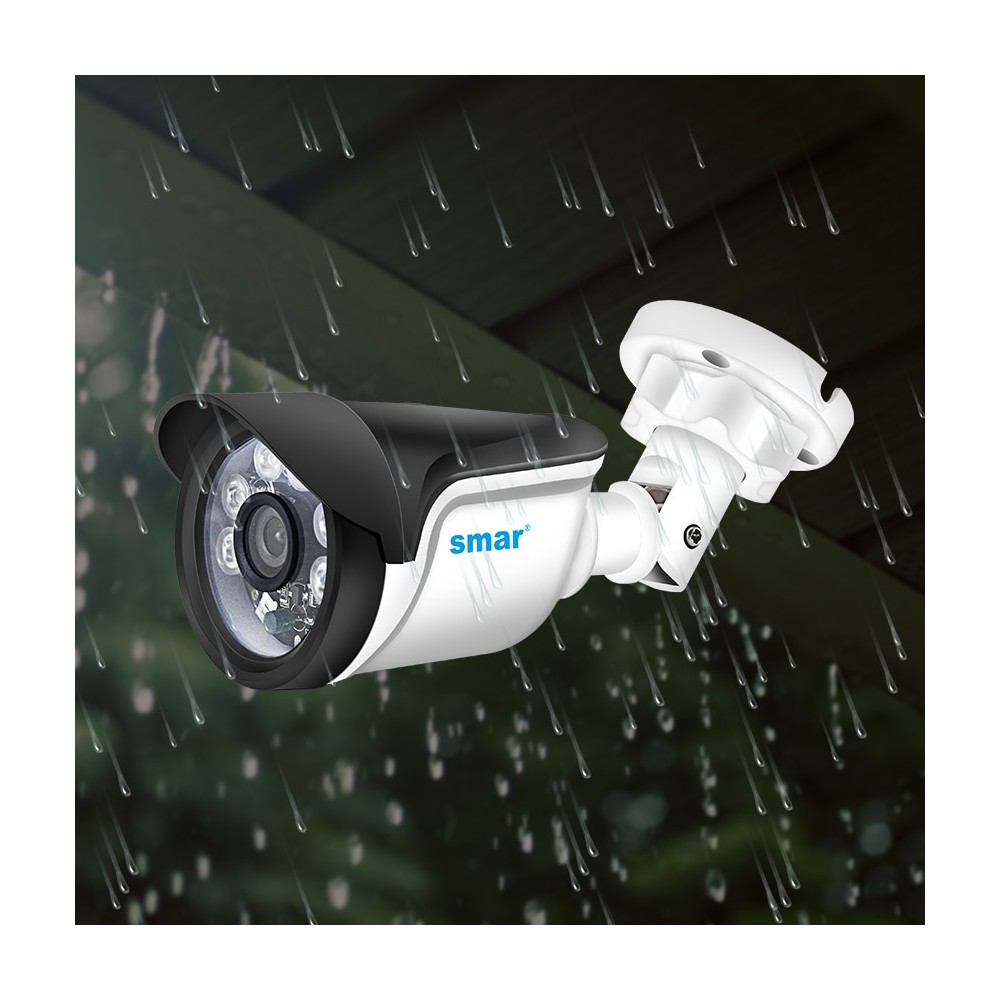

IR Night Vision and IP66 Waterproof

Equipped with 6 Nano IR LEDS, the camera provides clear 15-25(meters) night vision with uniform luminance,  low power consumption and longer service life.IP66 professional security surveillance camera for Outdoor/Indoor use. Operating Conditions: -20 °C ~ 50 °C, Humidity 95% or less (non-condensing)

Intelligent Motion Detection & Email Alert

You can enable motion detection alerts,When movement is detected in monitoring area, instant email will be sent to your mailbox and phone automatically. Get everything informed even you’re away from home.

Locate Incident Video With Smart Play

It effectively econnomized your time in playing back the video; Incident video clips can be found and marked in no time with smart playback function; so you get the chance to go directly to incident video clips while skipping others.

VGA and HDMI Output

It supports VGA/HDMI output simultaneously. You only put the device to your TV or Desktop Computer to enjoy exceptional clear video.

Remote Viewing, Anywhere, Anytime

Using the latest Cloud Technology, With the free APP, You Can Remote View or via Smart Phones, Tablets, Notebook or PC. Anytime, Anywhere... You'll know that's happening even when you're not around.

CMS For Local Review & Record

Default IP Address: 192.168.1.10

Username: admin

Password: null (empty)

Default Username of CMS:  super

Password: null (empty)

(As usual, DVR default IP address will be 192.168.1.10, but if your local Internet IP address with the same our default IP address, You must be changed the default IP address, you can edit the IP address of DVR by CMS.)

Website Interface Via IE

Please login your Google or IE or Firefox browser,

Then input default address 192.168.1.10 in your browser

Username:amdin

Password:null (empty)

Remind: If you use the software first time, you need to install a plugin in your computer.

P2P Via Cloud XMEYE.NET

If you want to remote view thourh Internet

Please login your Google or IE or Firefox browser

Then input Website of P2P Cloud: www.xmeye.net

Input your P2P ID, and your password, login in.

(If you want to remote visit the DVR through P2P, At first, you need open the "www.xmeye.net", If your computer can't open this website, please install all the Plug-ins in your computer, otherwise, Otherwise, you will not be able to remotely access this DVR, Please note).

How to remote view through Mobile phone?

1. You must be installed a APP in your mobile phone,where to find or download APP?

2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)
