Key Feature:

Note !

For RS485 and UTC functions, the camera must meet both functions and The camera baud rate, address code,

protocol must be the same as the tester.

​

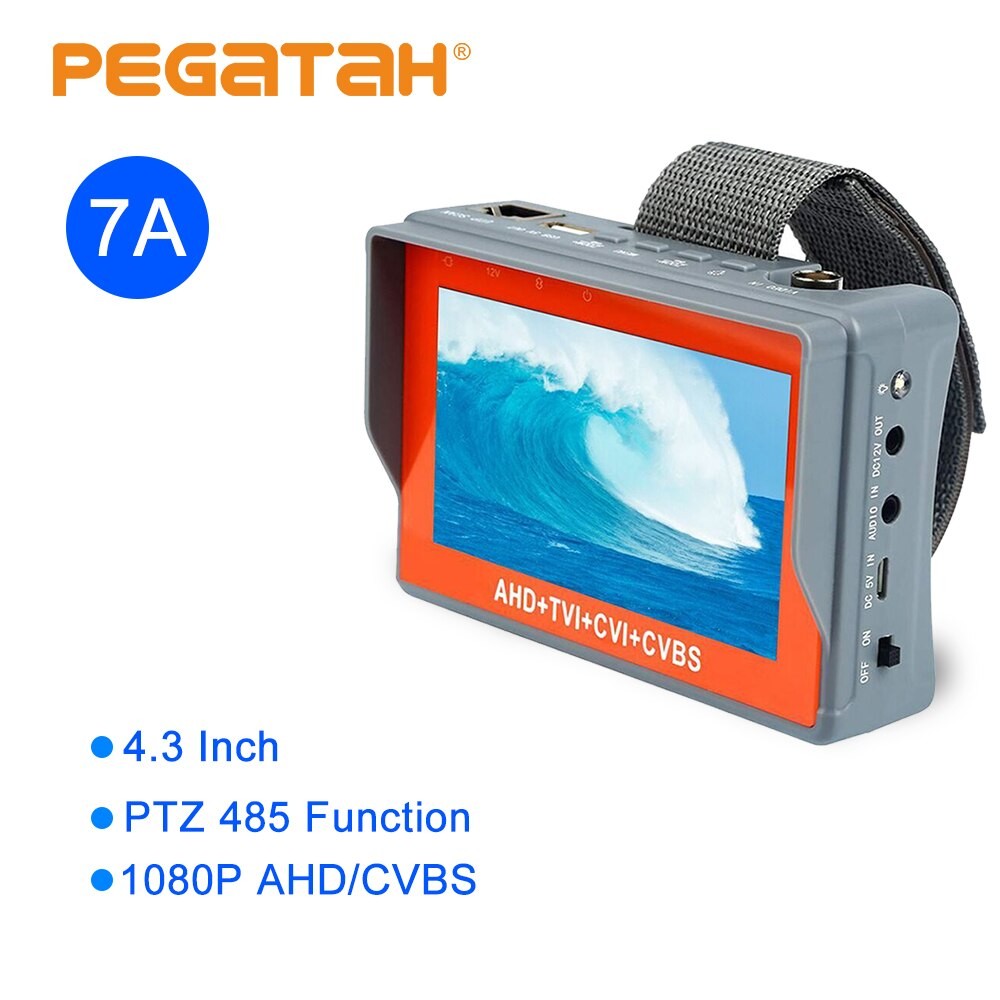

1. 7A-1080P  a,Support  4.3 Inch  b,1080p AHD/CVBS Video test   c,PTZ 485  and  UTP Cable tester Function

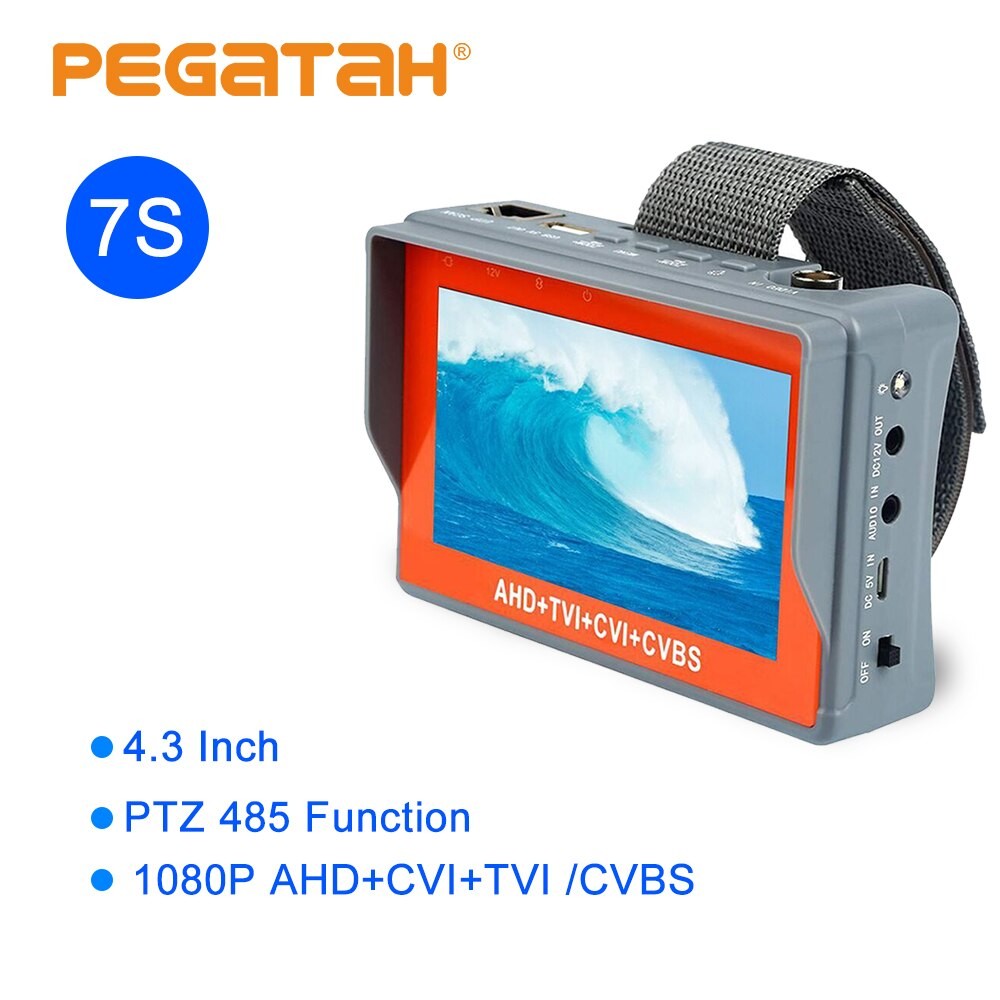

2.7S-1080P  a,Support 4.3 Inch   b,1080P AHD+CVI+TVI /CVBS Video test   c,PTZ 485 and UTP Cable teste Function

3. 7W-5MP , a,Support  4.3 Inch  b,5MP AHD+TVI  4MP CVI /CVBS  c,UPT Cable tester and PTZ 485 Function

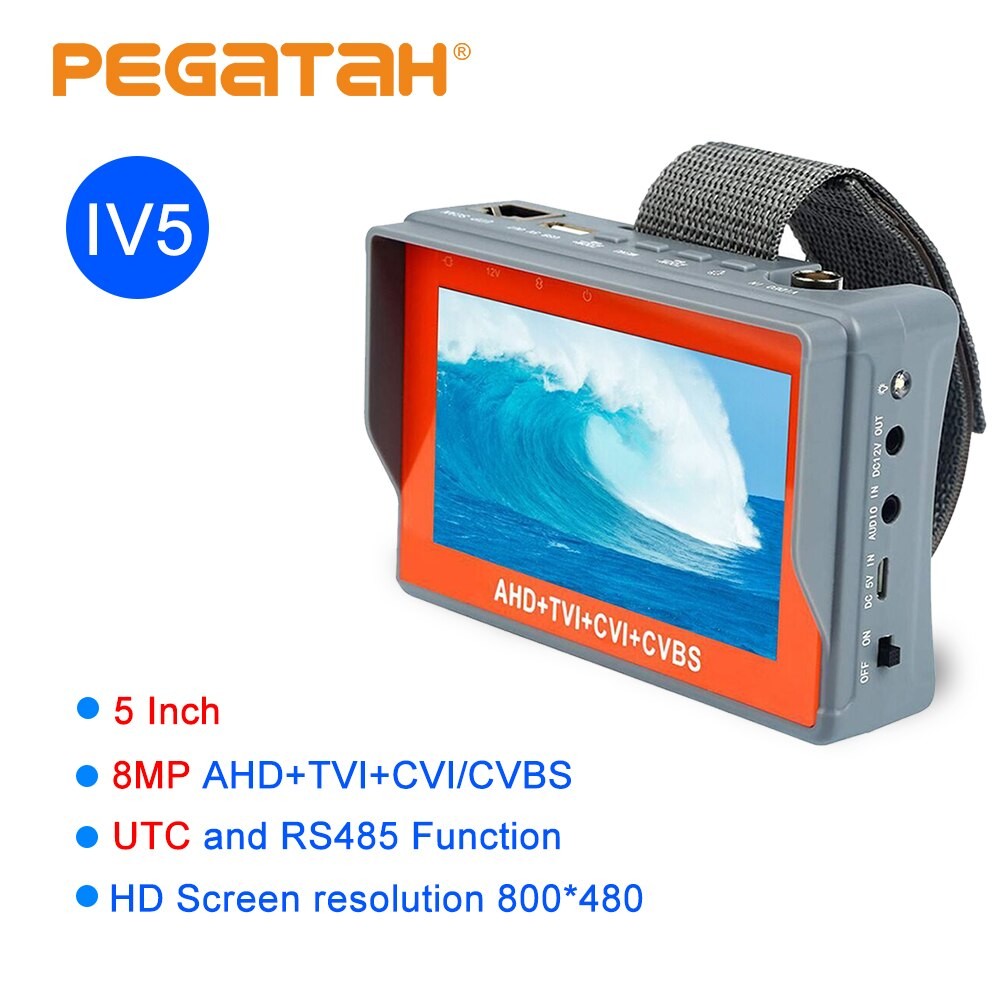

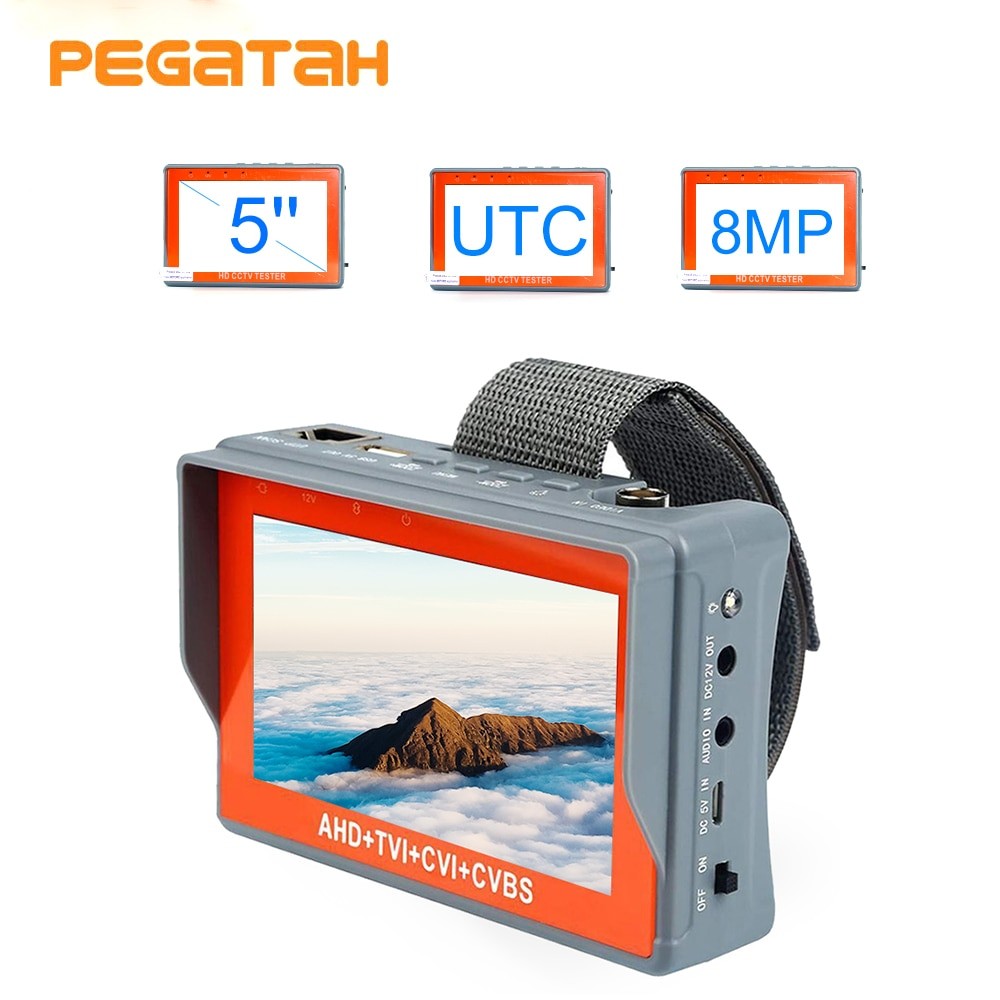

4.I5V-8MP,  a,5 Inch   b,HD Screen resolution 800*480      c,Support 8MP AHD+TVI+CVI/CVBS Video tester  d,UTC (HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information )and RS485 and UTP Function

 All ,Supported languages include ,English ,Italian,Russian,German,spanish,Portuguese,ENGELS,Chinese

1. 7A-1080P  a,Support  4.3 Inch  b,1080p AHD/CVBS Video test   c,PTZ 485  and  UTP Cable tester Function

Key Feature:

● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color(IV5 800 RGB *480P)

●  Support PAL/NTSC standard video signal. CVBS testing.

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

● UTP Network cable testing

Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.

● TVI camera test

HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.

● CVI camera test

HD CVI video surveillance testing,   When CVI signal input, the tester will display HD CVI camera image.

● AHD camera test

HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.

● LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
