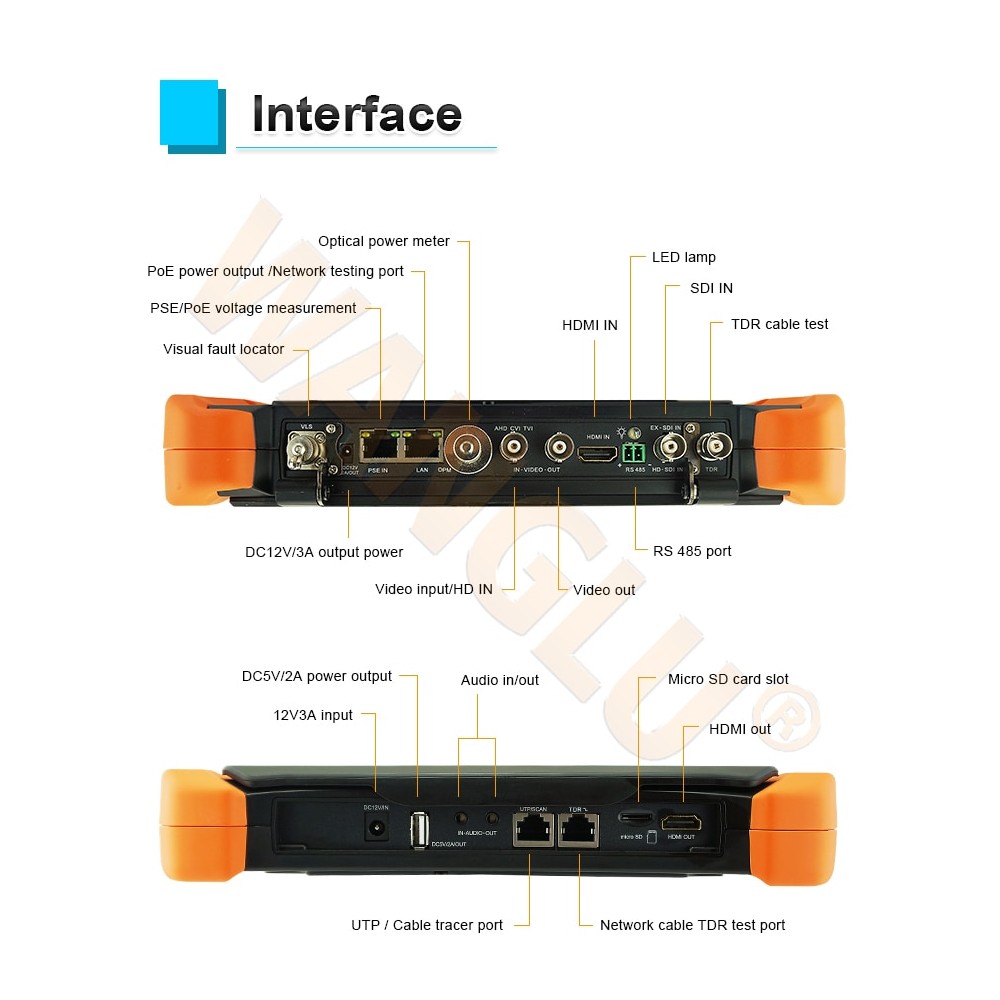

Different models have different ports and functions

X9-ADH: IP+CVBS+AHD+CVI+TVI   5 In 1 CCTV Tester

X9-ADHS: IP+CVBS+AHD+CVI+SDI+TVI 6 In 1 CCTV Tester

X9-MOVTADHS: IP+CVBS+AHD+CVI+SDI+TVI +Multimeter+optical fiber+visual fault locator+TDR（full function Model）

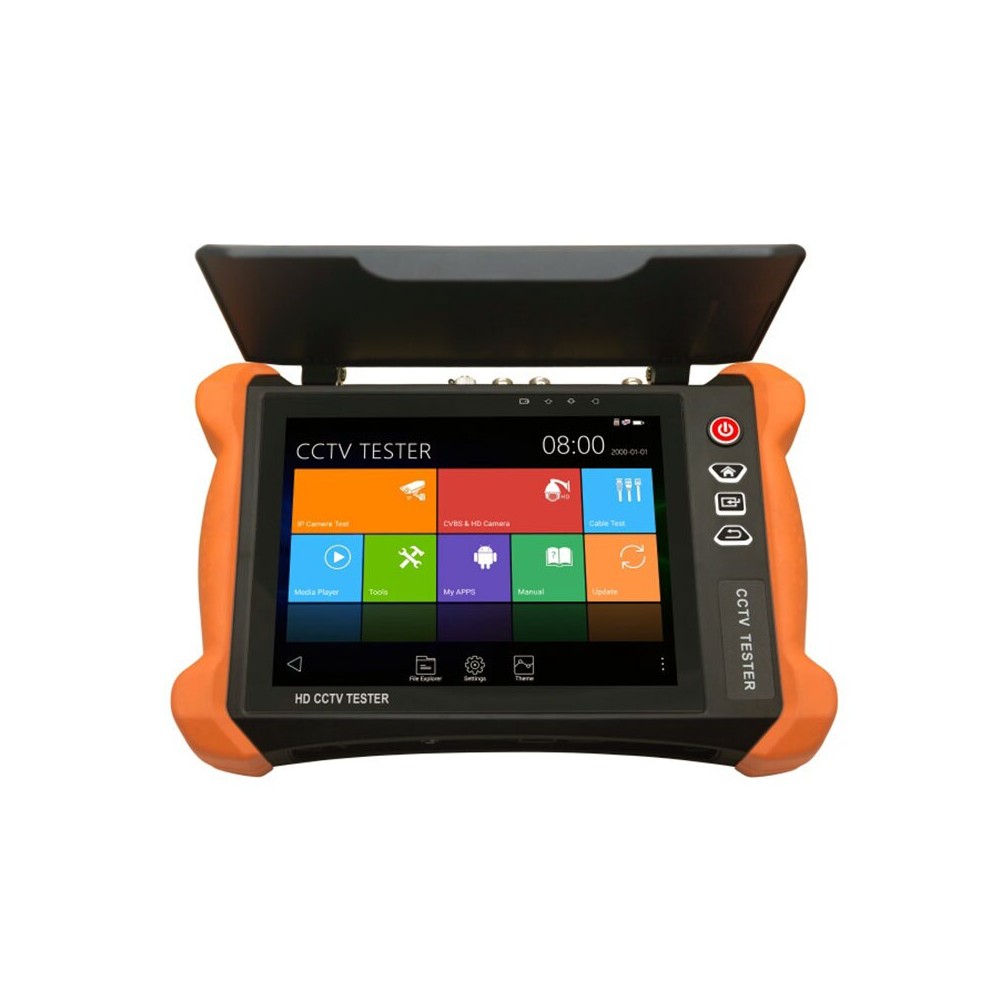

Model: X9-MOVTADHS (full option)

● 8 inch retina touch screen, 2048*1536 resolution

● 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI

● H.265/H.264, 4K video display via mainstream

● Chrome browser, test and set Axis camera

● Anti-sunlight and screen protecting cover

● HDMI input support 1080P

● HDMI output support 4K

● DC12V 3A, DC 48V PoE power output

● Rapid ONVIF, auto view video and create test report

● RJ45 cable TDR test ,UTP cable quality test

● Backlight buttons, easier to operate in the dark

● 4 channels ONVIF video simultaneous display

Features:

Camera test:

●  8 inch retina touch screen, 2048*1536 resolutions

●  H.265 & H .264 IP, 4K video display via mainstream

●  8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu

●  8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

●  8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

●  8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu

●  HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

●  3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

●  4 channel ONVIF video simultaneous display,4 channel display max support 1080P ,single channel display max support 4K

●  Rapid ONVIF, Auto log in and display image, create testing report

●  Chrome browser, test and set Axis camera

●  AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

●  CVBS camera test and PTZ control

●  IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

●  Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

●  DC12V/3A power output, camera can be powered from DC 12Votage

●  48V PoE power output power

●  Rapid video, just by one key to detect all network cameras and auto display

●  Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

●  CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

●  Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

●  Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

●  RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

●  Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

Other functions:

●  Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

●  POE & power information, DC12V& PoE power and voltage output /input measurement

●  Tester Play: Tester, android version mobile phone and PC display at the same time

●  Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

●  HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot

●  Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

●  Self -update software, you can install apps with android version

●  Media player, 4K video files and MKV/MP4 media files play

●  Quick office, quick office app (support excel, word, ppt format) doc. editable

●  8GB SD card including

●  Display its genuine resolution of the IP camera images

●  Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

●  7.4 V/ 7000mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging , working time lasts 13 hours

​
