Item Descriptions:

5/4.3 Inch 5/8MP CCTV Camera Tester AHD Tester Monitor TVI CVI CVBS Tester Monitor HD Display Portable Video Tester with LED

IV5 support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

IV5 support : 8MP camera tester ,5 Inch HD Screen resolution 800*480,Support 8MP AHD + 8MP TVI + 8MP CVI / CVBS Video tester , UTC (HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information ) and RS485 and UTP Function .

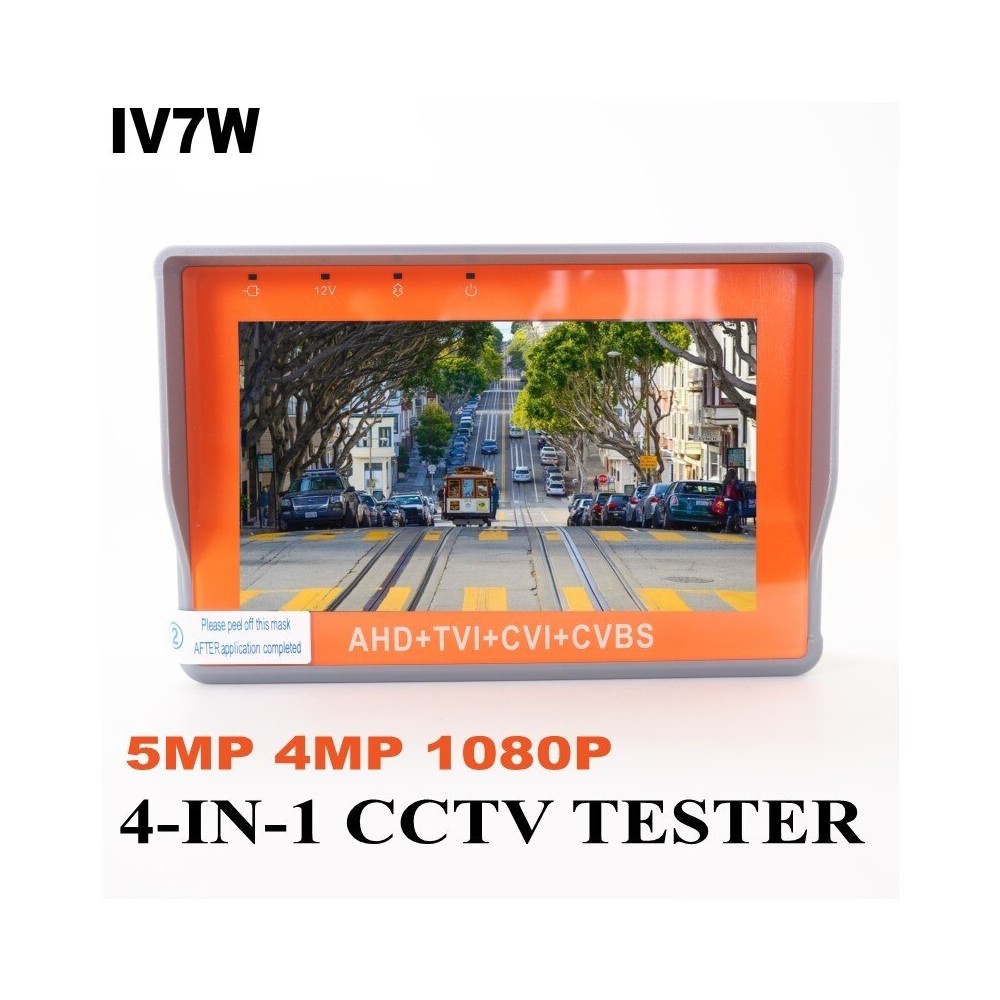

IV7W support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) 4.3 Inch Camera VideoTest:

(1) HD AHD Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test; (2) HD TVI Camera test: Support 5MP 4MP 3MP 1080P 720P Camera Video test; (3) HD CVI Camera test : Support 4MP 3MP 1080P 720P Camera Video test;

IV7A support CVBS + AHD (1080P) 4.3 Inch Camera VideoTest:

IV7A could not support TVI CVI camera tester , only suppoert AHD 1080P camera and CVBS camera .

Product overview:

HD AHD TVI CVI Analog CVBS Camera Tester The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, cable testing, LED lamp etc.

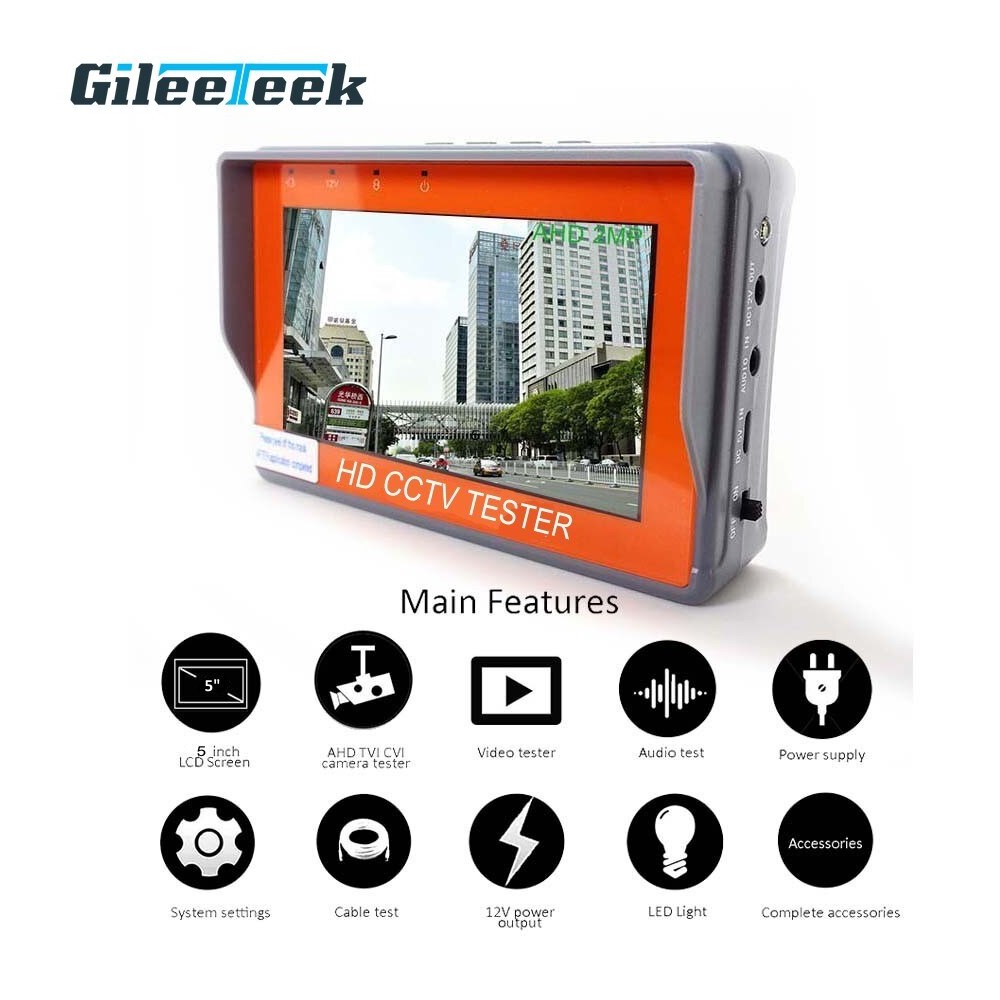

Main Features:

● 4.3/5-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color , IV7A /IV7W is 4.3inch , IV5 is 5inch .

● Support PAL/NTSC standard video signal. CVBS testing.

● PTZ controller Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

● UTP Network cable testing Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.

● TVI camera test HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.(IV7A not support )

● CVI camera test HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.(IV7A not support )

● AHD camera test HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.(IV7A only support 1080P camera )

● LED lamp It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

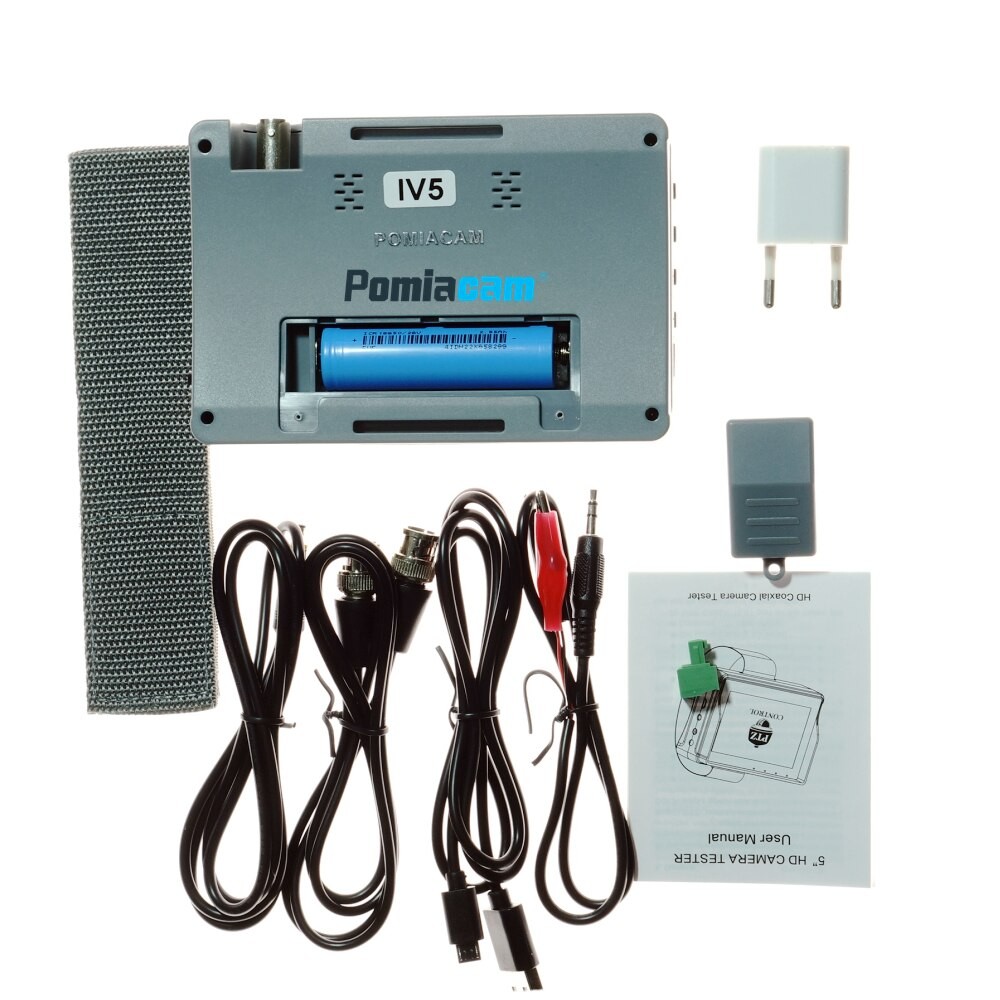

Packing list:

CCTV Tester * 1

AC/DC Adapter * 1

Power Output Cable *1

Transformer * 1

A/V Cable * 1

Video Cable *1

Date Cable * 1

Wristbands * 1
