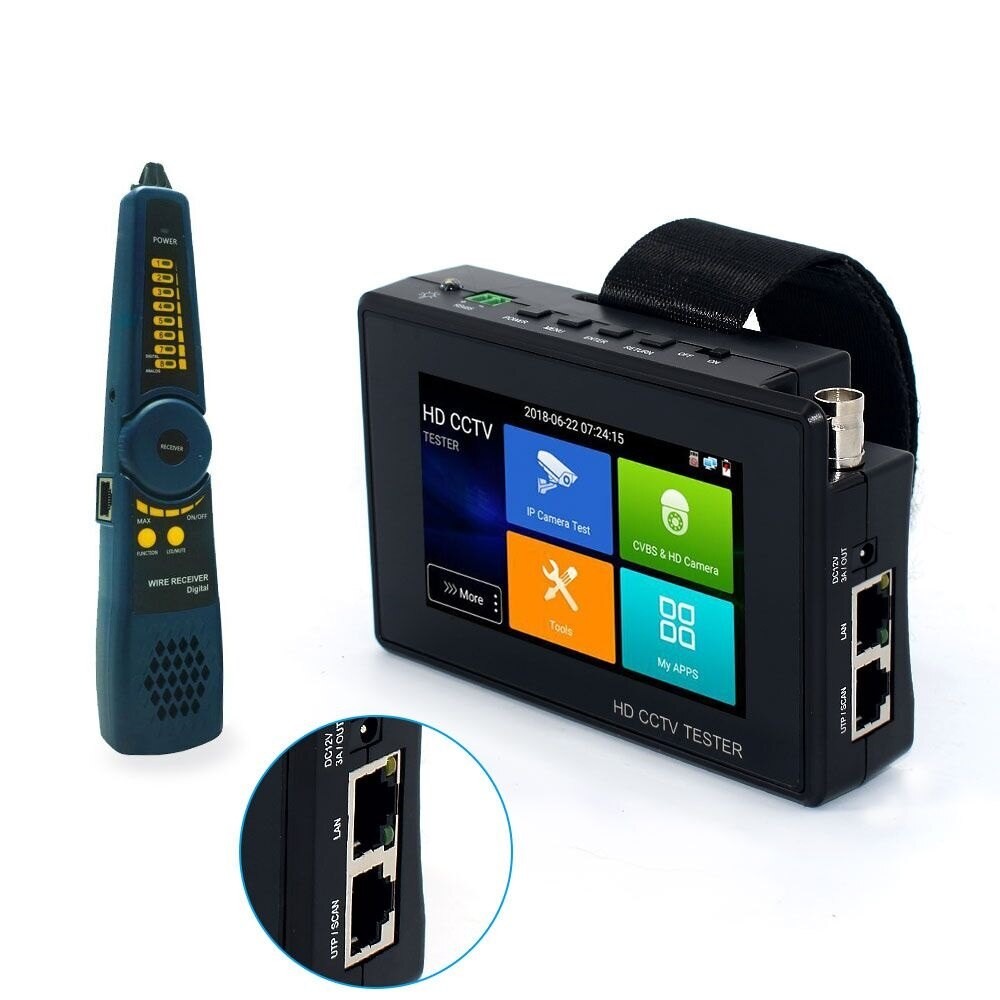

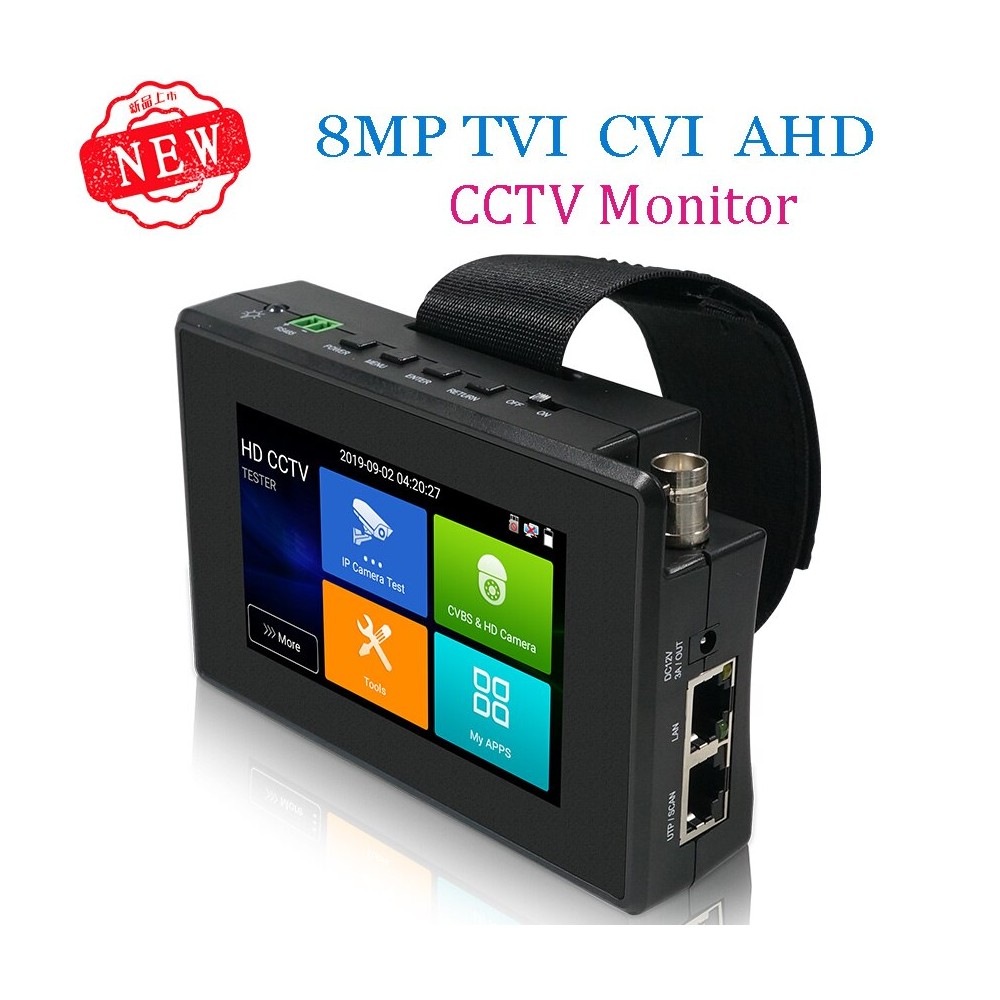

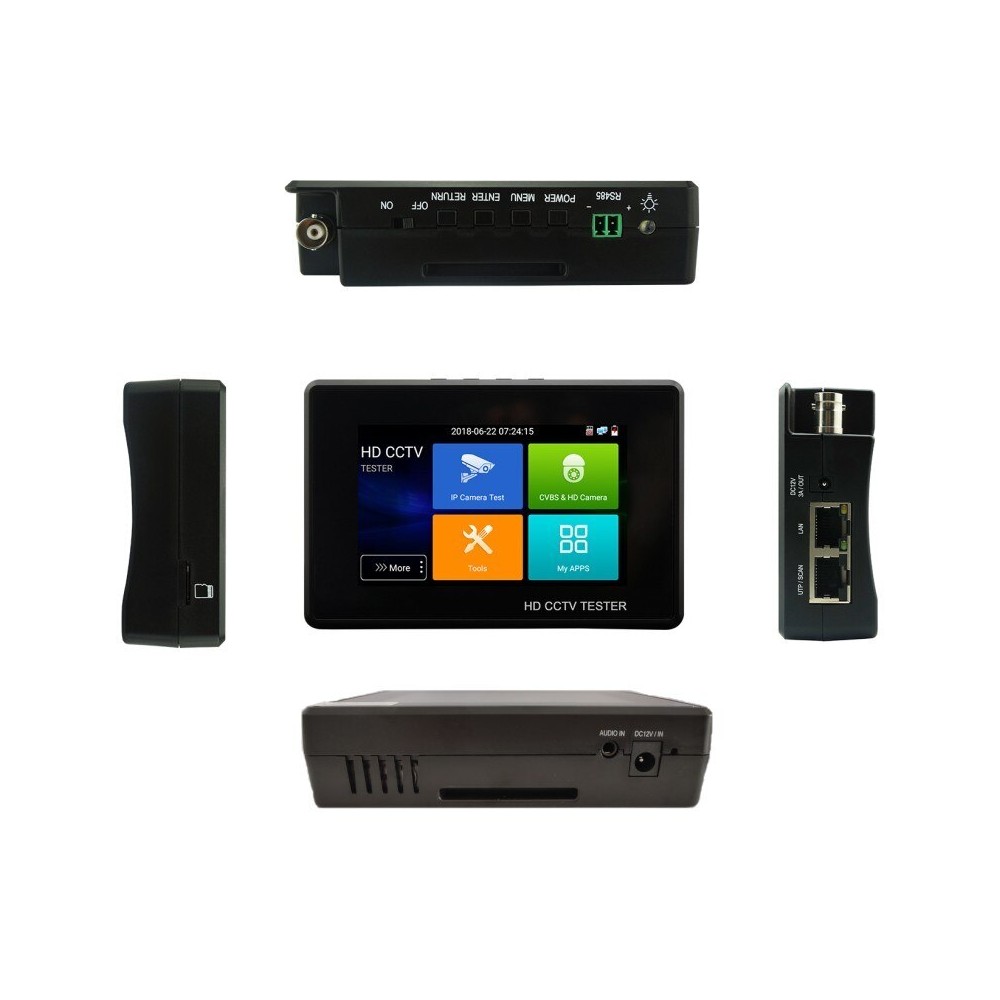

New 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

Model: IPC-1800ADH Plus

● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test

● H.265/H.264, 4K video display via mainstream

● Dahua, Hikvision, Axis etc ONVIF camera test

● Rapid ONVIF, auto view video and create testing report

● DC12V 3A, DC48V PoE power output

● Built in WIFI, create WIFI hotspot

● RJ45 cable TDR test,cable quality test

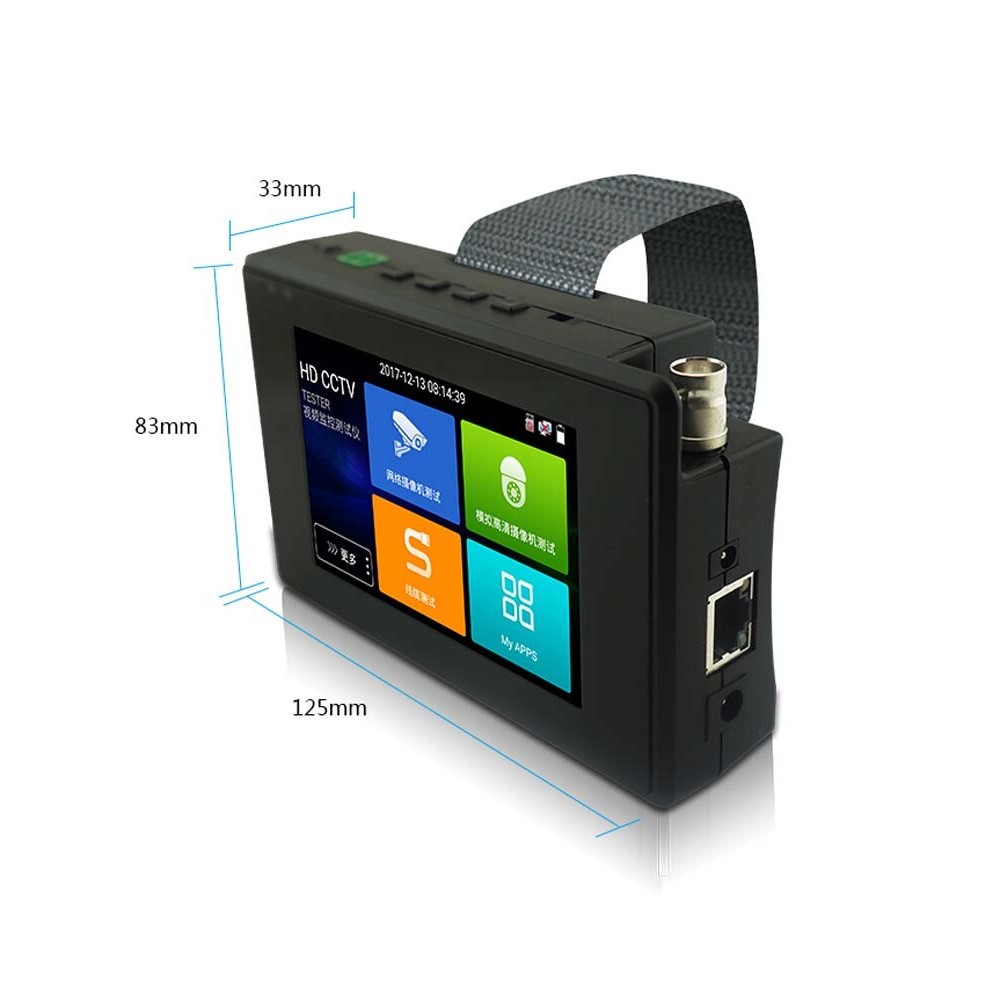

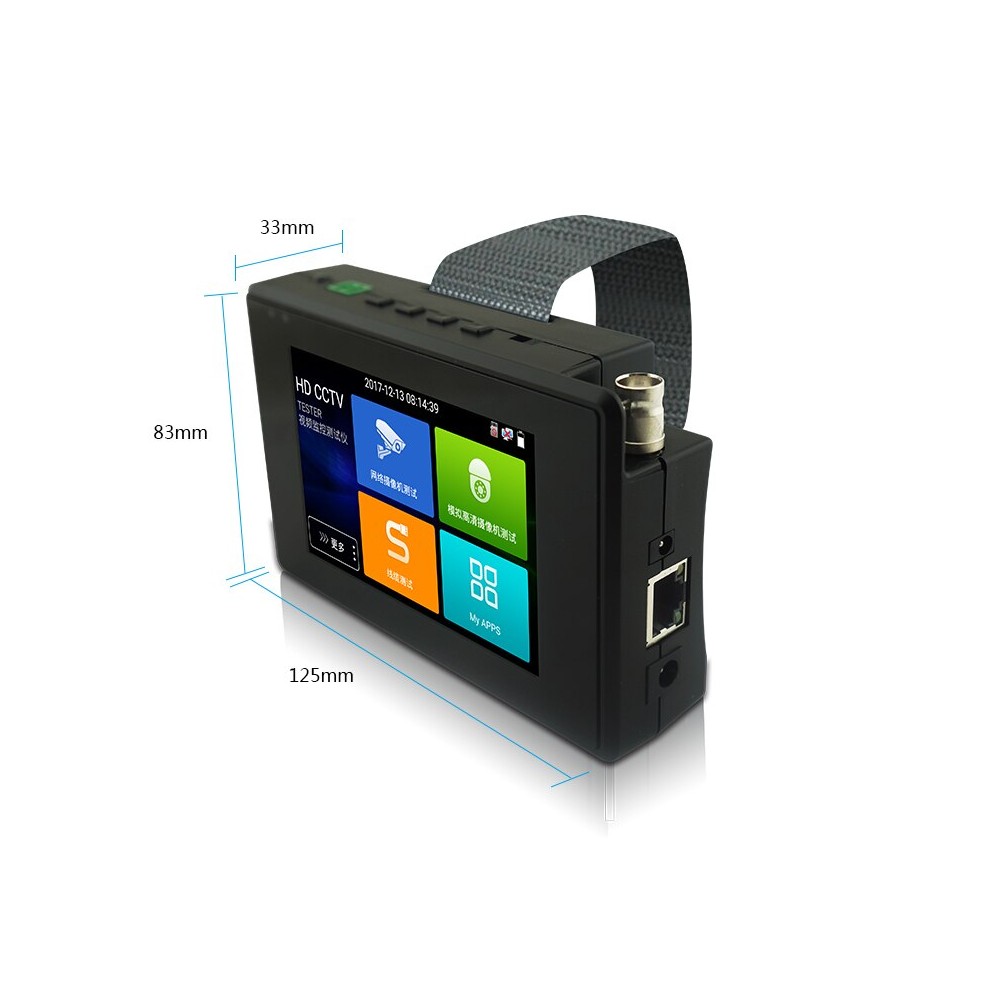

● Wrist design, portable and easier to carry

● 10/100/100M Ethernet, network state and traffic displayCamera test:

● 4 inch touch screen, 800*480 resolution

● H.265 & H .264 IP, 4K video display via mainstream

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● 8MP TVI/8MP CVI/8MP AHD

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● IP discovery, just by one key to detect all network cameras IP address

● Rapid video, just by one key to detect all network cameras and auto display

● DC 12V 3A power output

● PoE DC48V power output, Max power 25.5W

● Innovative coaxial HD focus, video signal quality test

● Built in WiFi, display image from the wireless camera, create WIFI hotspot

Cable test:

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:

● 10/100/1000M Ethernet, network state and traffic display

● Wrist design, portable and easier to carry

● TesterPlay: Tester, android version mobile phone, PC display at the same time

● Network tool: PING test, IP address scan, port flashing etc

● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

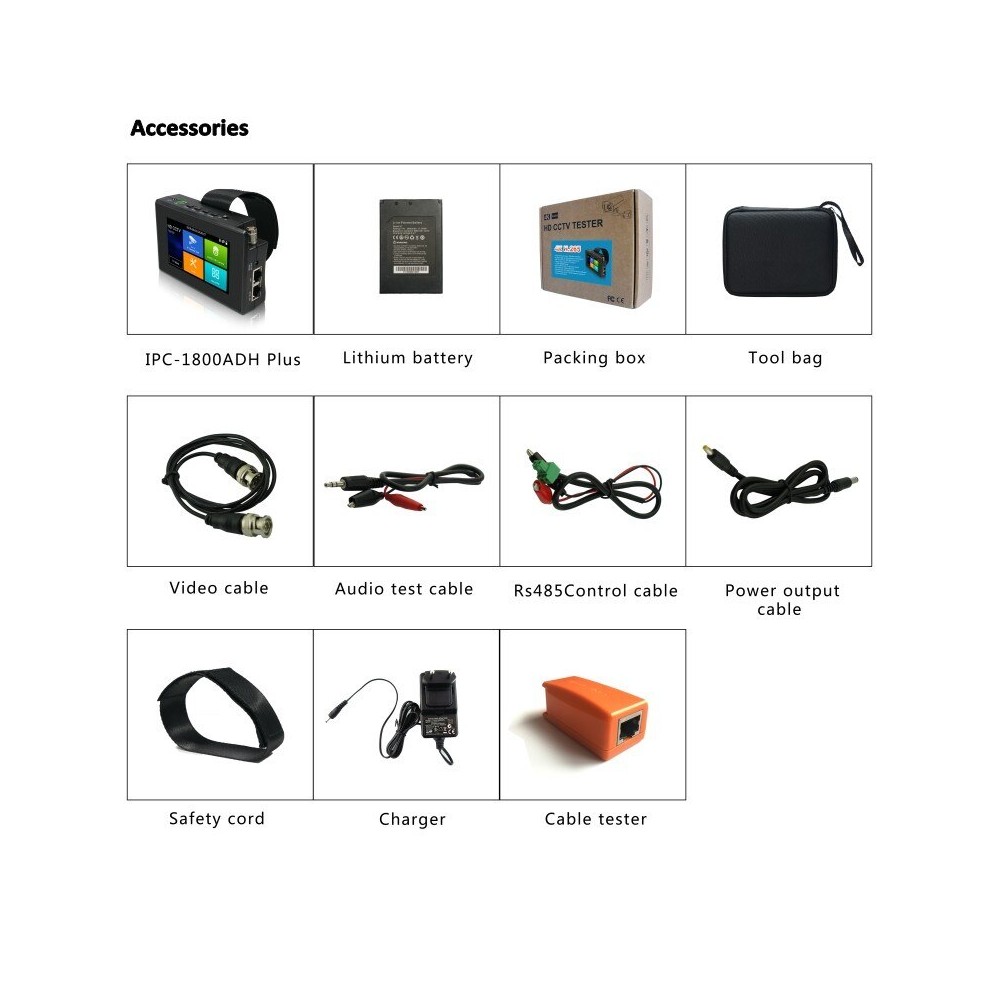

Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
