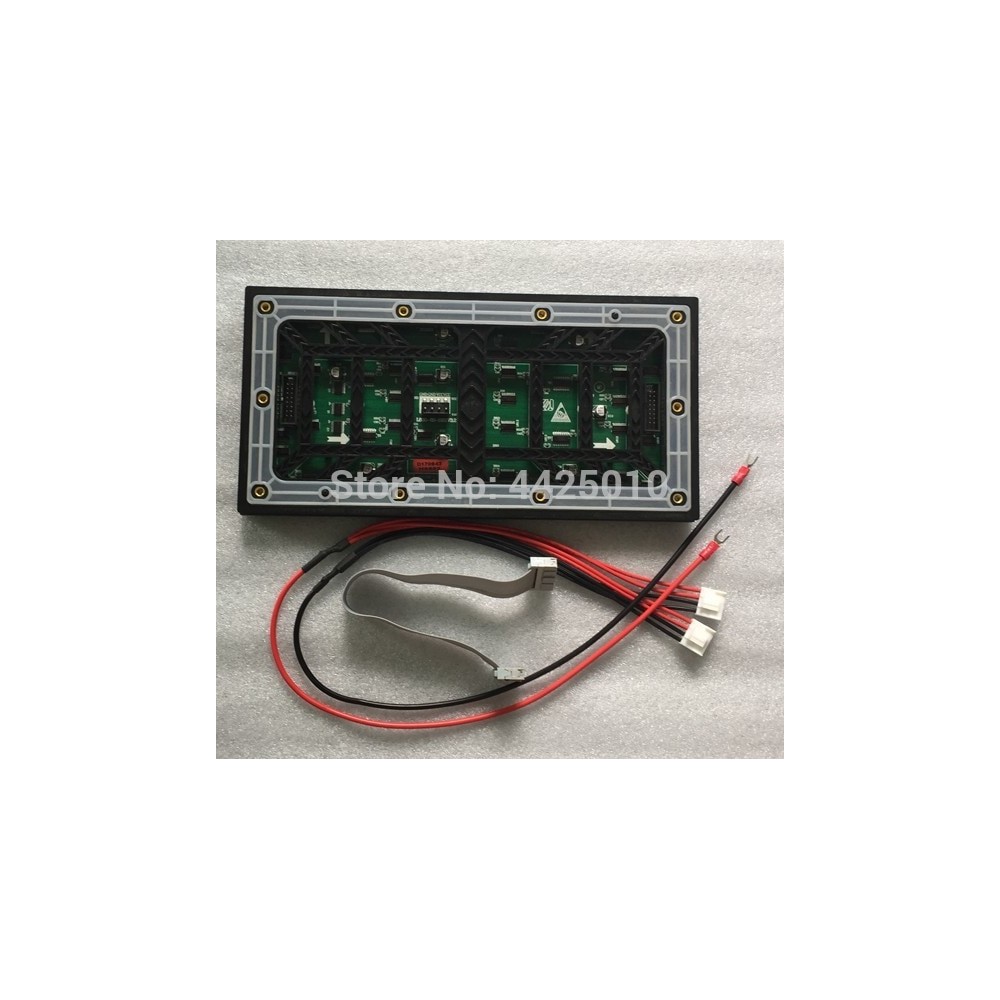

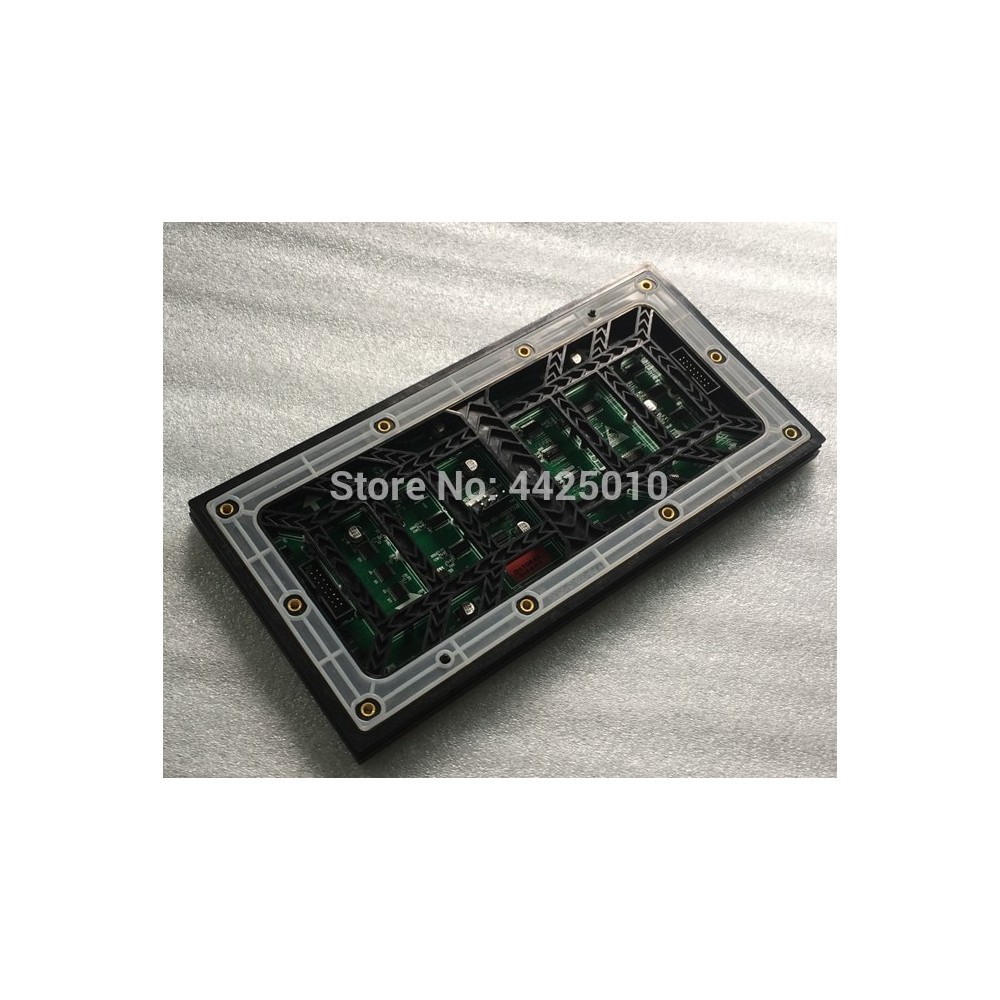

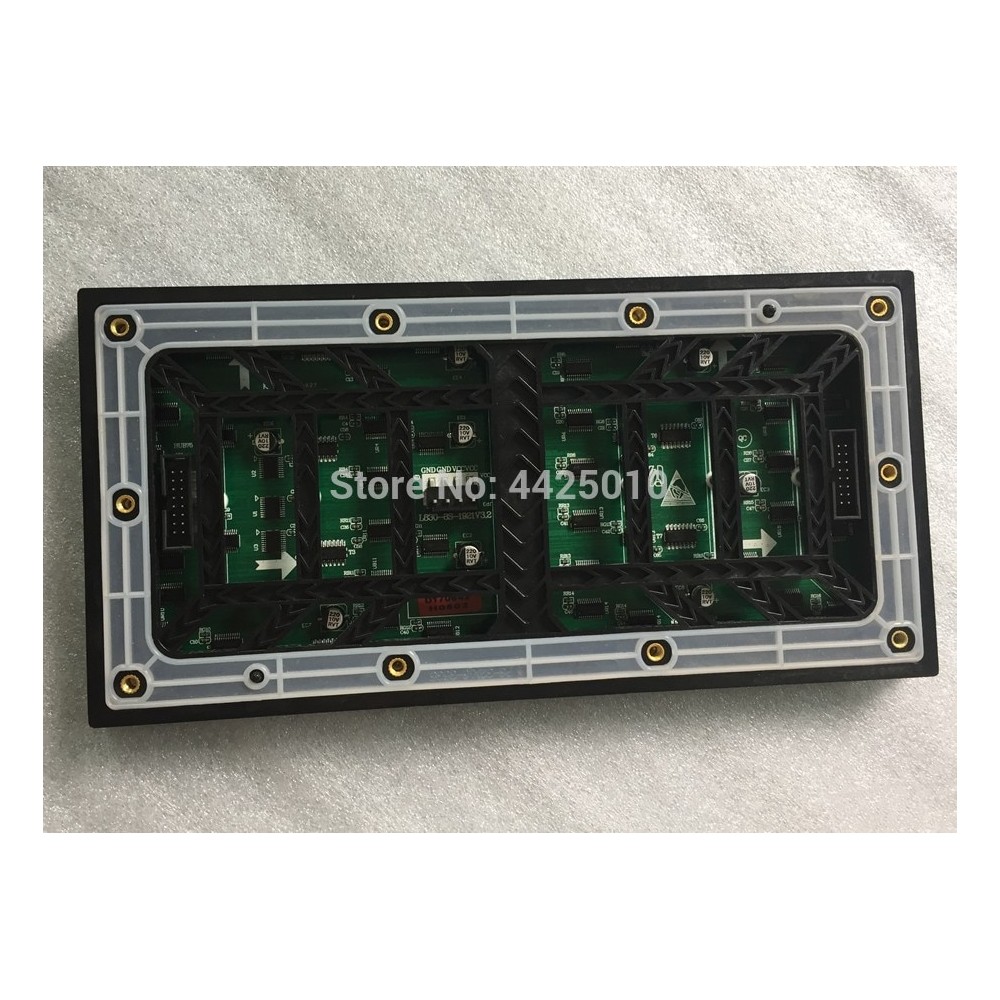

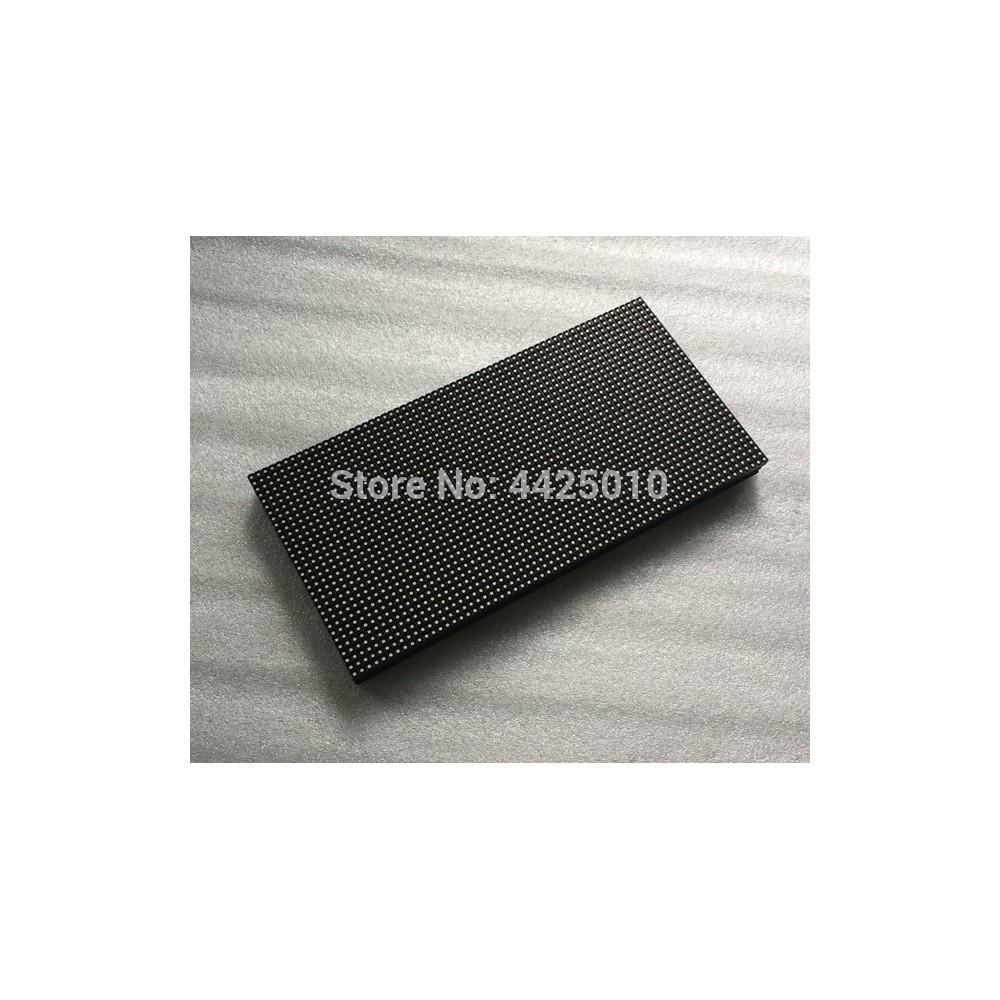

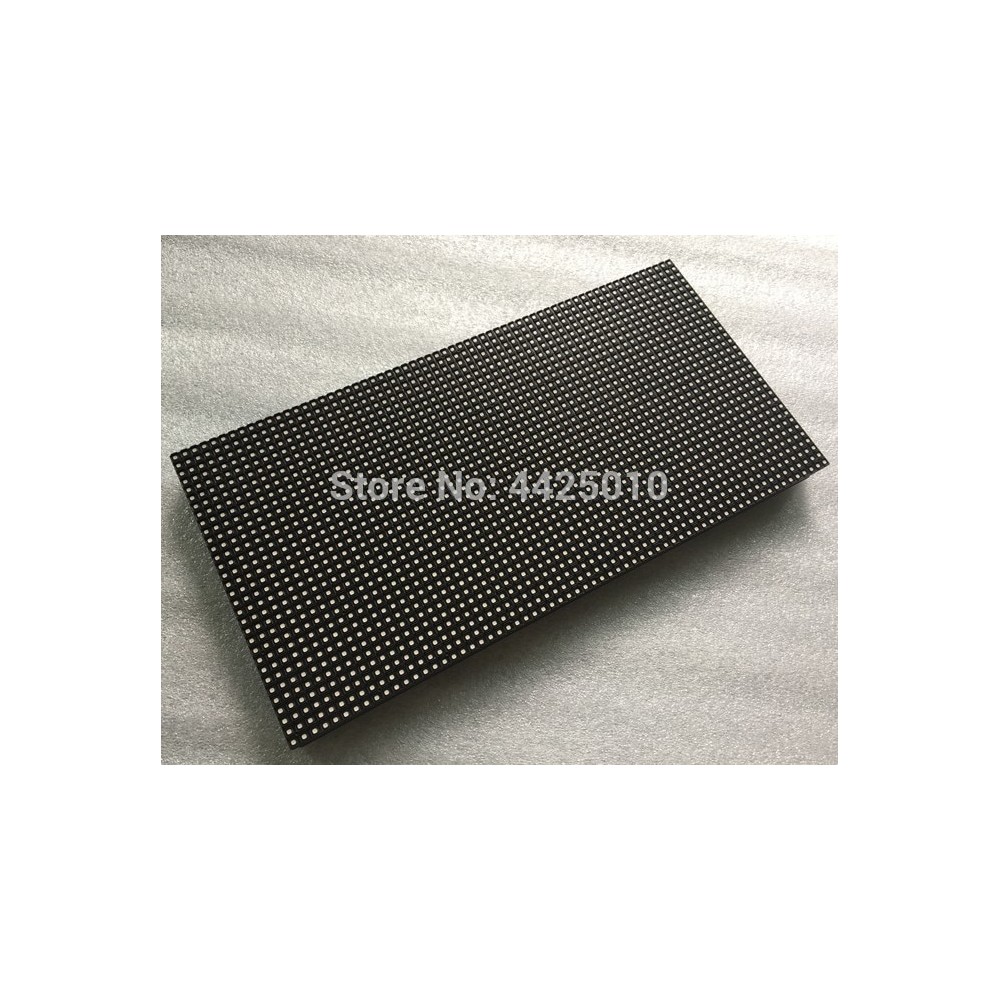

HD P4 outdoor LED Display module HUB75 interface P4 SMD 256*128mm IP65 led display module

0 people are viewing this product with you

NOW $83.20

SPECIAL OFFERS FOR THIS PRODUCT:

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi

Product Description

P4 outdoor die casting aluminum technical parameter list

Item	outdoor full color led display
Model Number	P4
Pixel Pitch	4mm
Pixel Density(dots/m⊃2;)	62500
Pixel Configuration	3 IN 1
LED Type	SMD1927
Module size(mm)	256*128
Module Resolution(dots)	64*32
Min.Viewing Distance(m)	≥3
Brightness(cd/m⊃2;)	≥6000
Viewing Angle(degree)	≤180°
Average Power Consumption(w/pcs;)	50
Scan Mode	1/8
Protection Level	IP65
Cabinet Size(mm)	512*512
Color Temperature	The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage	AC220 V/50HZ or AC 110V/60HZ
Refresh Rate	LED screen refresh frame freauency recommended is no less than 1200HZ(recommended)
Color	64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle	160°
Gray Scale	Recommended 14BIT
Effective Communication Distance(without relay)	Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.
Power Supply	Domestic Power Supply
Printed Circuit Board(PCB)	4 Layer
Cabinet weight	11.5KG
Cabinet Resolution(dots)	256*128
Cabinet	Die-casting Aluminum Cabinet
Warranty	3 Years
