Color Bar Generator CCTV Camera Tester CVBS AHD 5MP CVI 4MP TVI 5MP Cable Line Monitor Detection
0 people are viewing this product with you
Loading...
Loading...
Loading...
Loading...
NOW
$109.44
SPECIAL OFFERS FOR THIS PRODUCT:
60 seconds to decide
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi
More details:

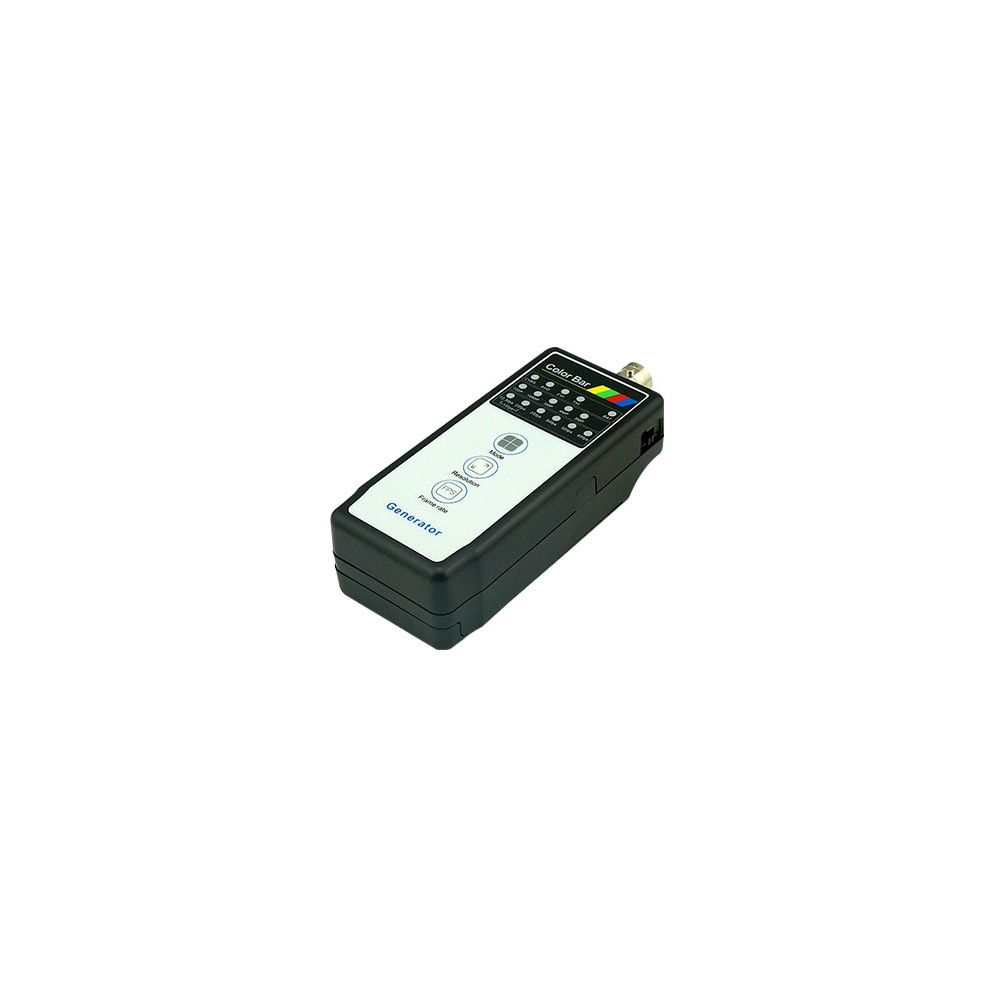

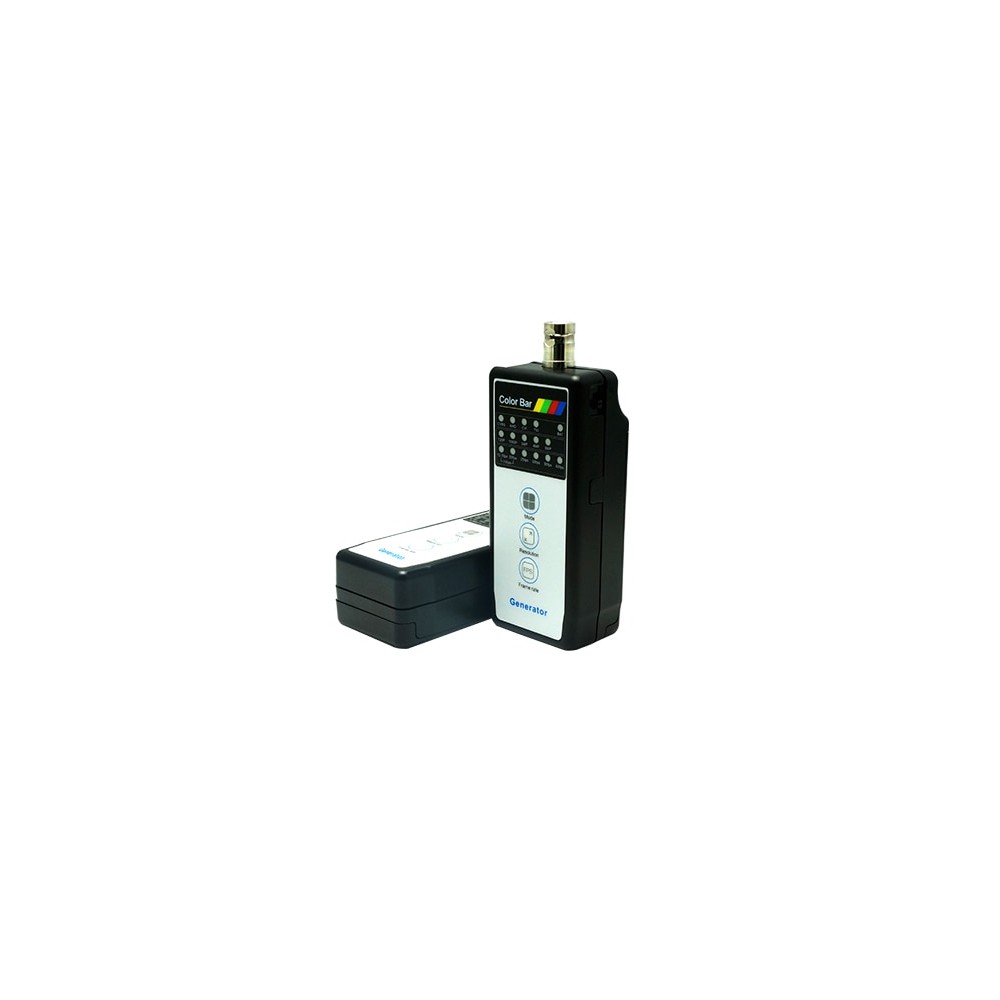

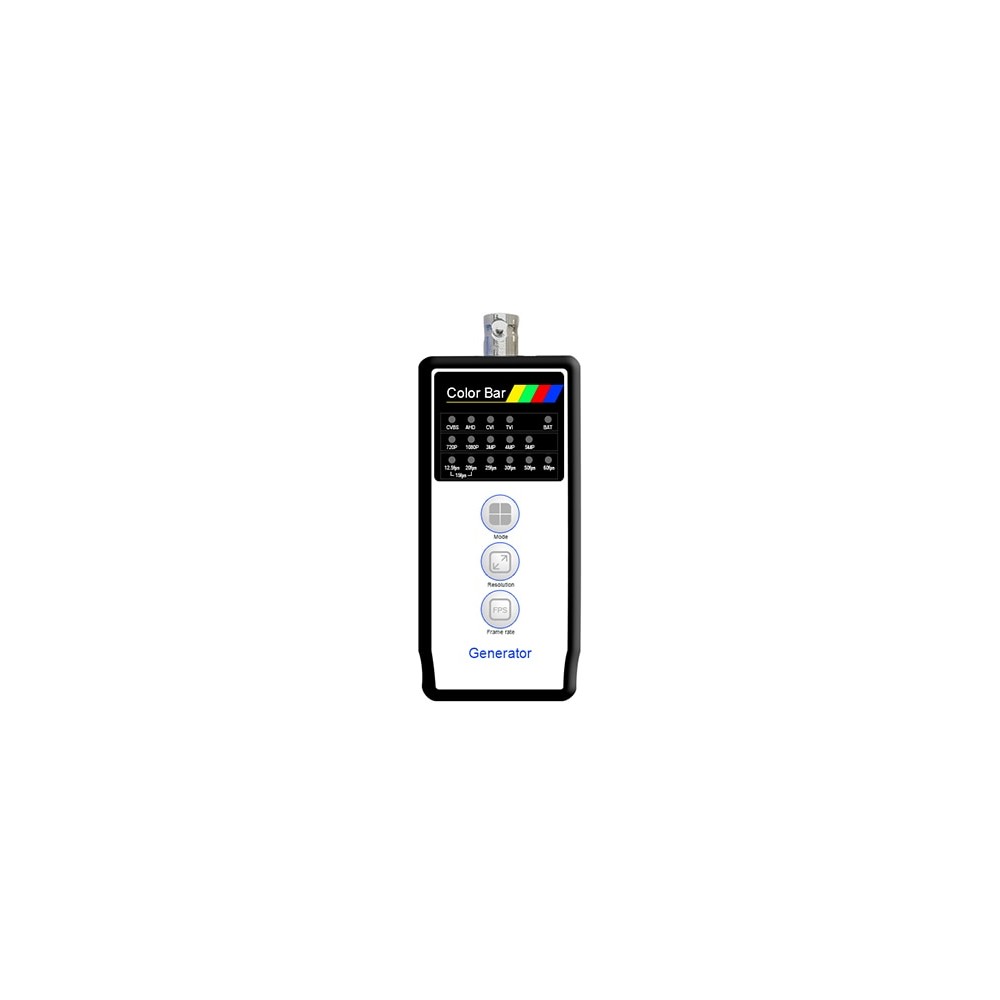

Model:VT4800 Color Bar Generator CVBS+AHD 5MP +CVI+TVI
● Support up to AHD 5MP, TVI 5MP, CVI 4MP test
● Support CVI/TVI/AHD multiple resolution and frame rate
● Support PAL/NTSC output

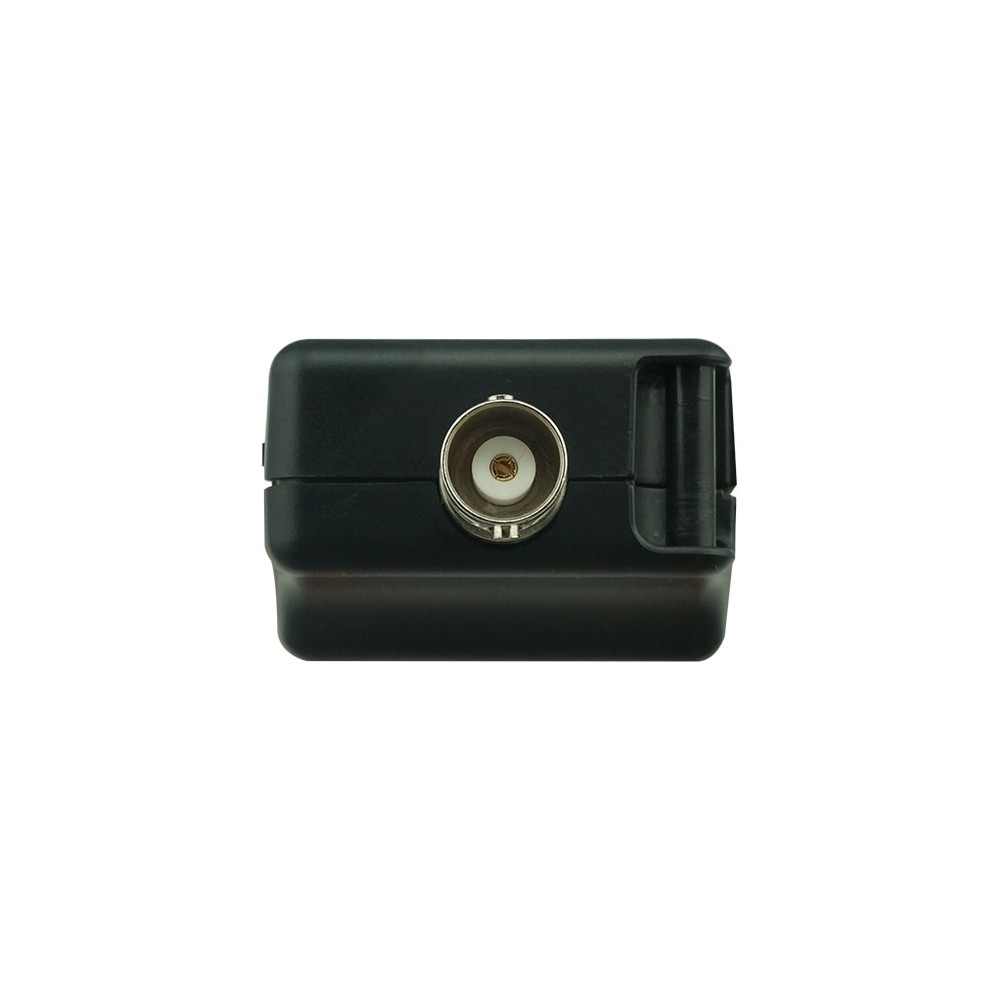

● One channel AHD/TVI/CVI/CVBS output
● Use AA battery
● Monitor detection
● Cable/line detection
Functions:
● Used together with cctv tester/monitor, the color bar generator outputs the color bar image to cctv tester/monitor to determine if the transmission cable/line is normal.
● The color bar generator is used with the tester's HD coaxial level test function to record the level value of the laying cable, which is convenient for maintenance and overhaul, and compares reference table to check the cable aging attenuation.
● Connected with the monitor to be tested , the color bar generator outputs the image to the monitor to check whether the monitor is normal.
● AHD/TVI/CVI supported resolution table:
|
Model |
VT-4800 |
|
CVI color bar output |
One channel CVI BNC output, support up to 4MP |
|
TVI color bar output |
One channel TVI BNC output, support up to 5MP |
|
AHD color bar output |
One channel AHD BNC output, support up to 5MP |
|
CVBS color bar output |
One channel CVBS BNC output, support PAL/NTSC multi-standard output |
|
Power |
|
|
External power supply |
AA battery Buy it locally. Not including |
|
General |
|
|
Working Temperature |
-10℃---+50℃ |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
97.5 mm x 38 mm x 25 mm / 0.04 kg |
