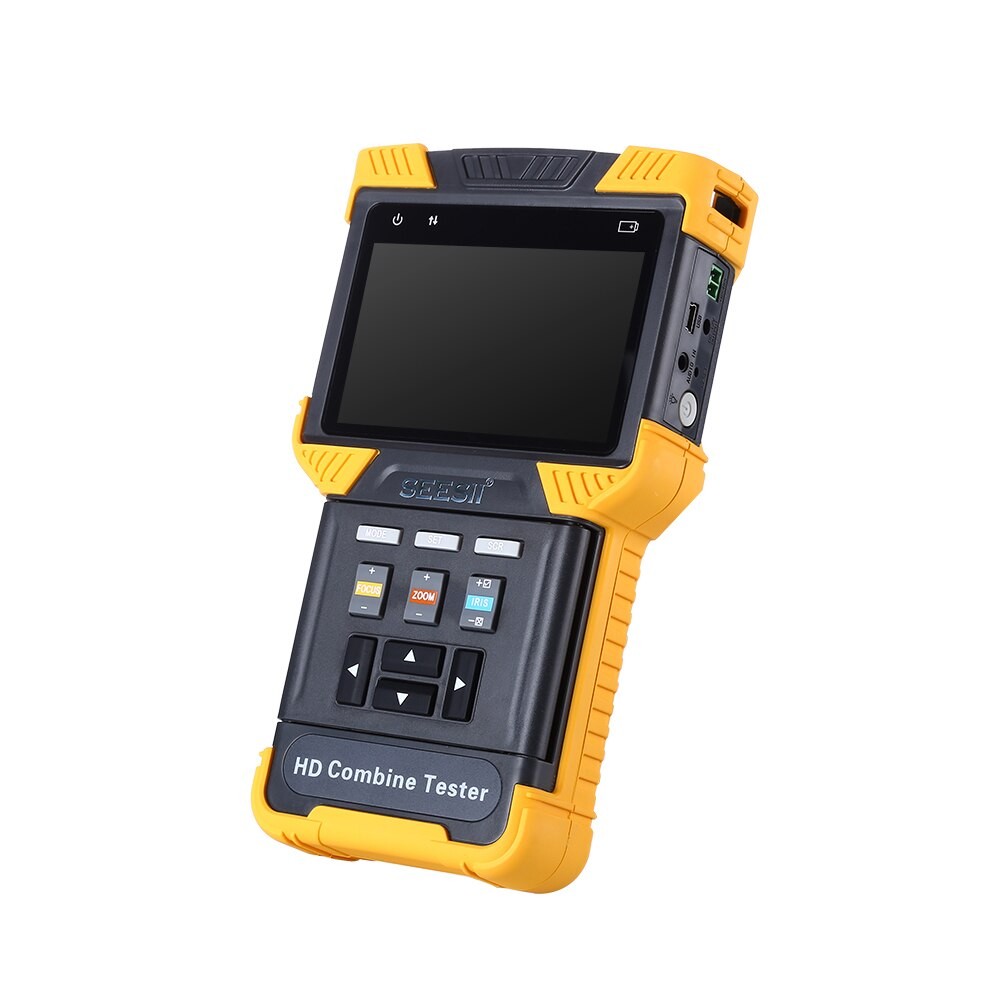

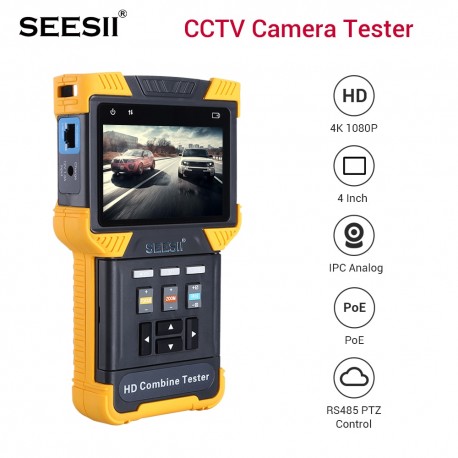

Test Monitor DT-T71 HD 1080P IP CCTV Camera Tester Security Combine Test Monitor TDR ONVIF Security ONVIF Video Cam tvi tester
0 people are viewing this product with you
Loading...
Loading...
Loading...
Loading...
Loading...
NOW
$540.32
SPECIAL OFFERS FOR THIS PRODUCT:
60 seconds to decide
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi
More details:
Test Monitor DT-T71 HD 1080P IP CCTV Camera Tester Security Combine Test Monitor TDR ONVIF Security ONVIF Video Cam tvi tester
Features:

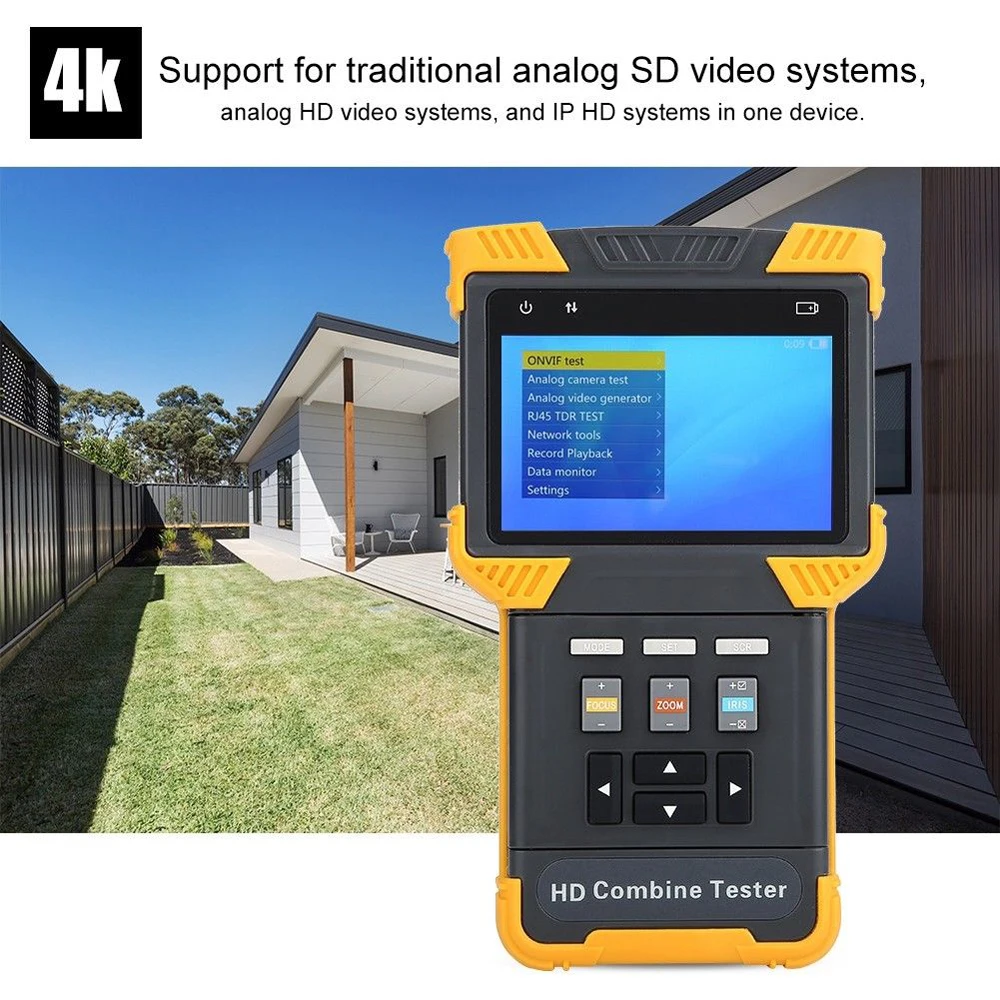

- Support for traditional analog SD video systems, analog HD CVI/TVI/AHD video systems, and IP HD systems in one device,also with OSD manual.
- Step-by-step testing guide allows you to locate faults quickly.
- Highly compatible with ONVIF protocols.
- Ergonomic, portable design and single-handed operation.
- On-screen operation tips.
- POE power supply, PD power accept, and 12V/2A power output.
- Dual 1000M network ports, supports packet loss detection, data flow monitor, etc.
- 4.0 inch IPS Display with 800 * 480 resolution and 16.7M colors.
- Flip keyboard input.
- Replaceable lithium-ion polymer battery, battery life of 10 hours.
- Rubber protection layer.
- Dual LED torch light.
Specifications:
| model | T71 |
| interface | |
| Network interface | Dual 10/100M RJ45, support switch mode |
| Function interface | Dual BNC connector (Video input/output), RS485comm, audio input,USB, reset button |
| IPC test | |
| protocol | ONVIF 2.4.1, RTSP, RTP |
| Ethernet test | 10/100MLink test;link speed test;Ethernet loop detect;Ethernet flow monitor;Link quality indicator; |
| IP Setting | Manual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching |
| IPC Test | Discover, inter-subnet discover, camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video (8step), save snapshot, record video (original stream), UDP/TCP switching, packet lost indicator, camera profile setting. |
| IPC Image Test | H.265/ H.264 Encode, Support 4K@30FPS |
| Hikvision/ dahua camera activate | Automatic detect. |
| Analog SD test | |
| SD standard | NTSC, PAL |
| Video resolution | D1 |
| Signal level | 1Vpp |
| Camera test | Real time video, PTZ control, audio test, full screen preview, digital zoom of video (8 step), save snapshot, record video (H.264), video resolution and frame rate indicator. |
| PTZ controller | |
| Communication protocol | Hikvision,Pelco-D/P,Samsung,Panasonic,Lilin,Yaan...more than 30 protocols |
| Baud rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
| Other test | |
| Network analysis | Sniff, list sub-net,ping |
| Video generator | Send PAL/NTSC of various test pattern to output |
| Record playback | Local playback, snapshot and video digital zoom, video frame by frame play support |
| CVI/TVI/AHD | Support CVI/TVI/AHD camera testing |
| TDR RJ45 Cable Test | |
| RJ45 Cable Test | 0~200m RJ45 cable test,open/short/broken wire,resolution 1m |
| device | |
| Display | 4.0inch TFT 800*RGB*480(WVGA) resolution,16.7M color,back light level adjustable |
| Internal storage | 8GB flash |
| LED torch | Two 35lm LED, can turn on individually when device is off. |
| Operation | Power button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys. |
| Language | Chinese, English, French, Spanish, Germany, Turkish, Russian |
| Keypad tone | On/Off |
| Software upgrade | Online upgrade |
| power | |
| battery | Dedicate li-polymer battery, user replaceable, capacity 11Wh |
| Power output | 12V/1Aoutput |
| Battery work time | Charge 3~4 hours, working time 5 hours |
| other | |
| Working temperature | -10~+55 |
| Working humidity | 30%~90% |
| Device Dimension | 190x113x37mm |
Package Included:
1x CCTV Camera Tester
1x PoE Power Injector
1x Battery
1x Battery Cover
1x Network Cable
1x BNC Cable
1x RS485 Cable
1x 12V Power Output Cable
1x Audio Cable
1x Mini USB Cable
1x Screen Protector Film
1x Lanyard
1x Tool Bag
