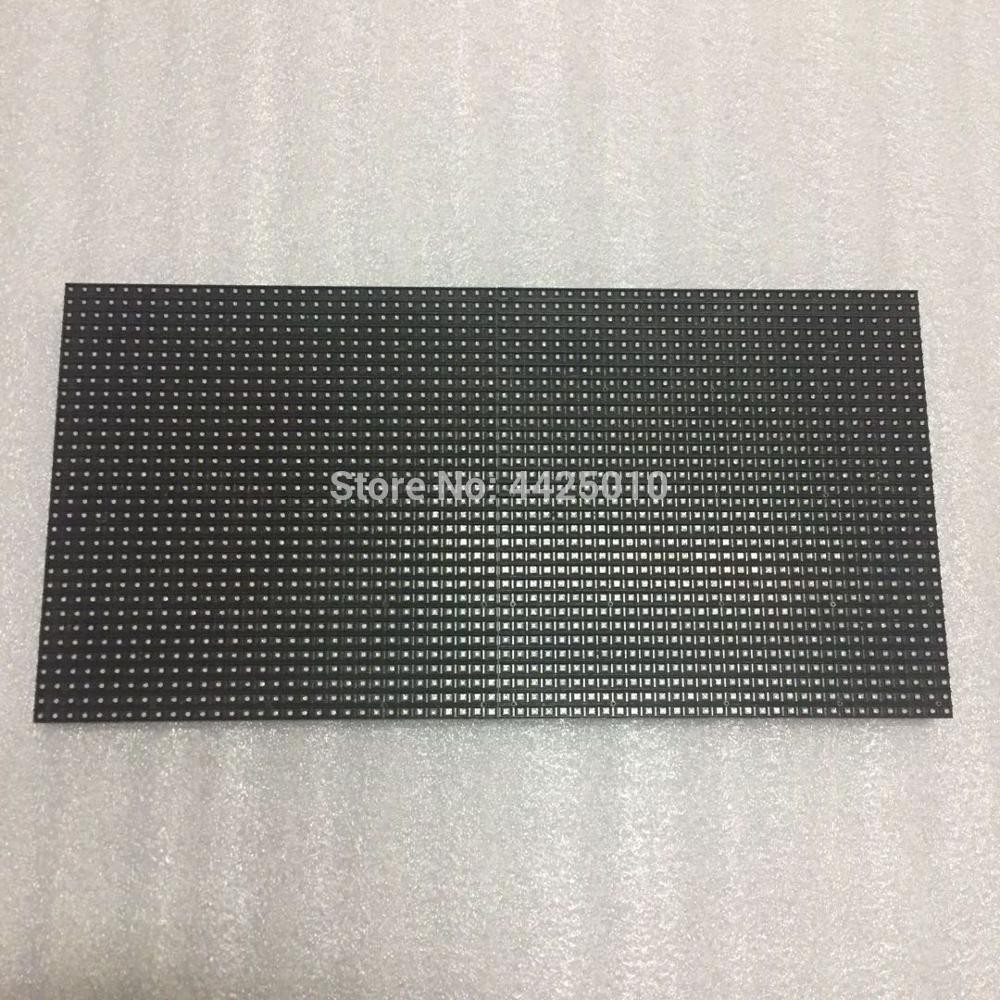

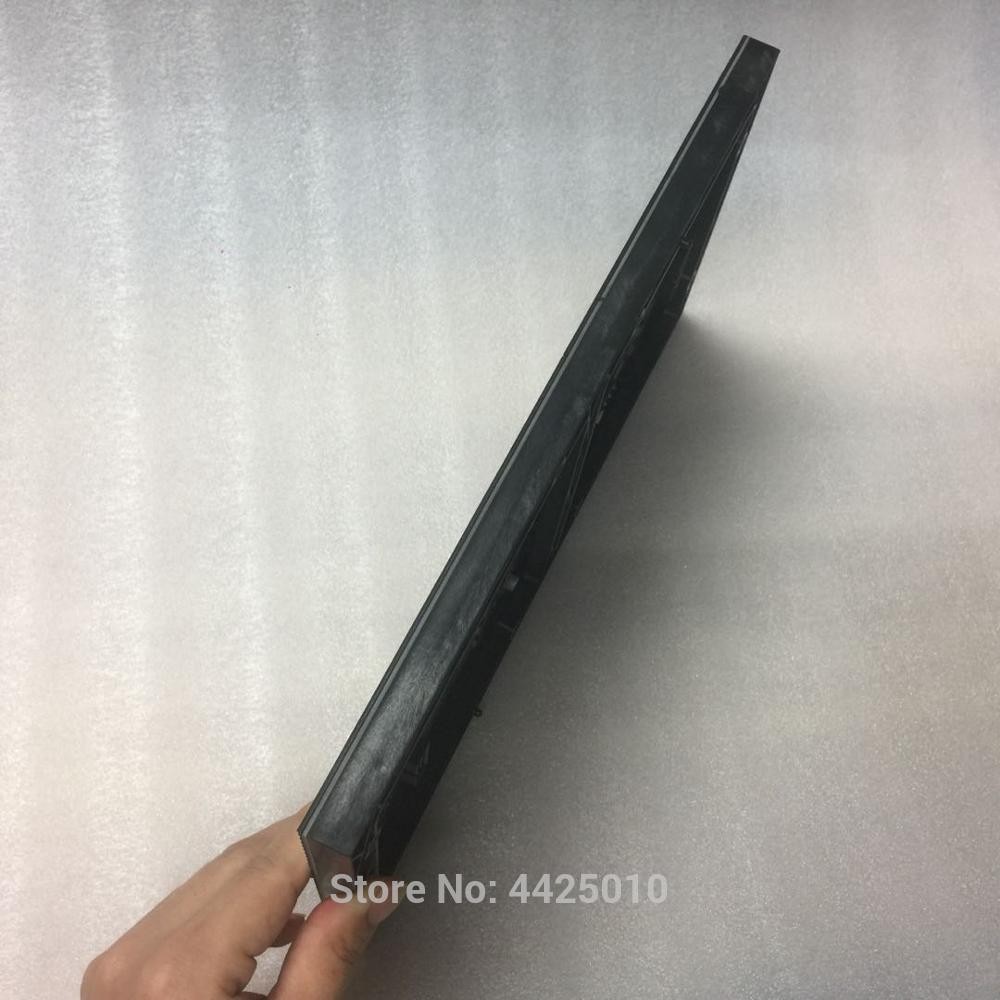

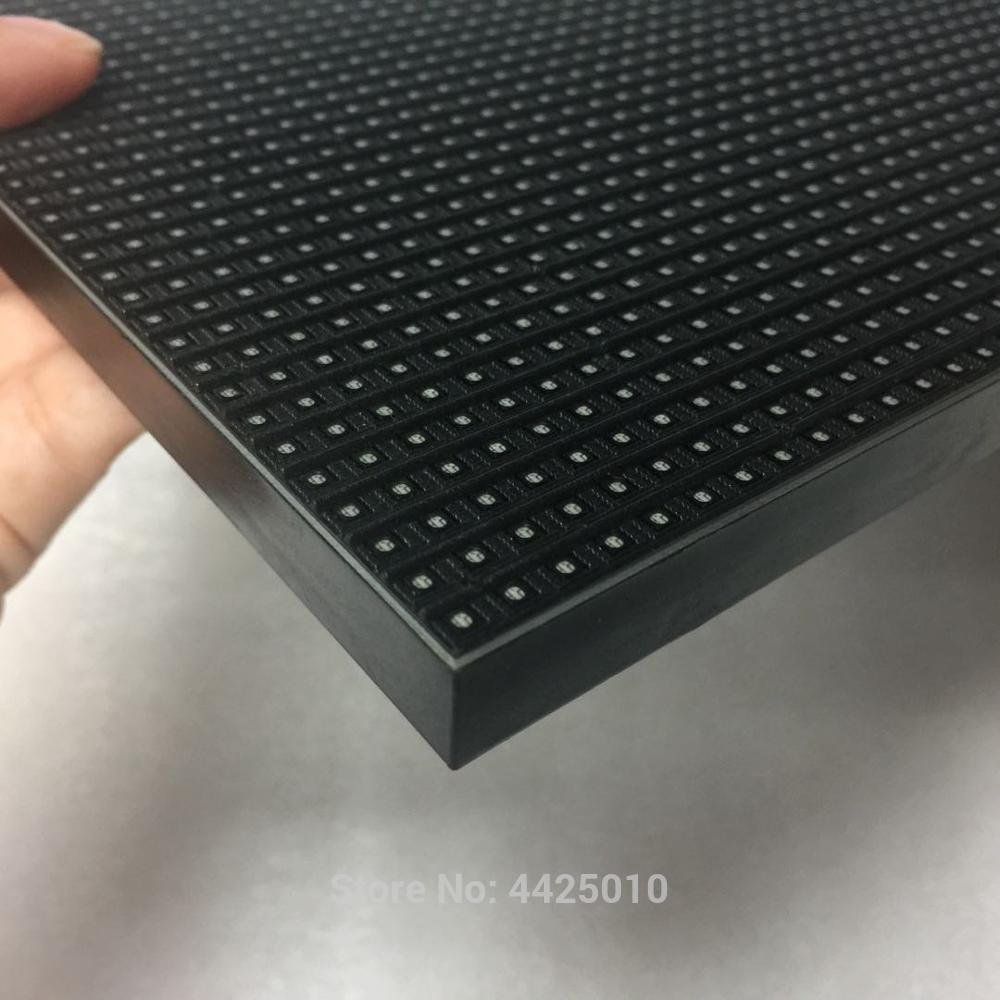

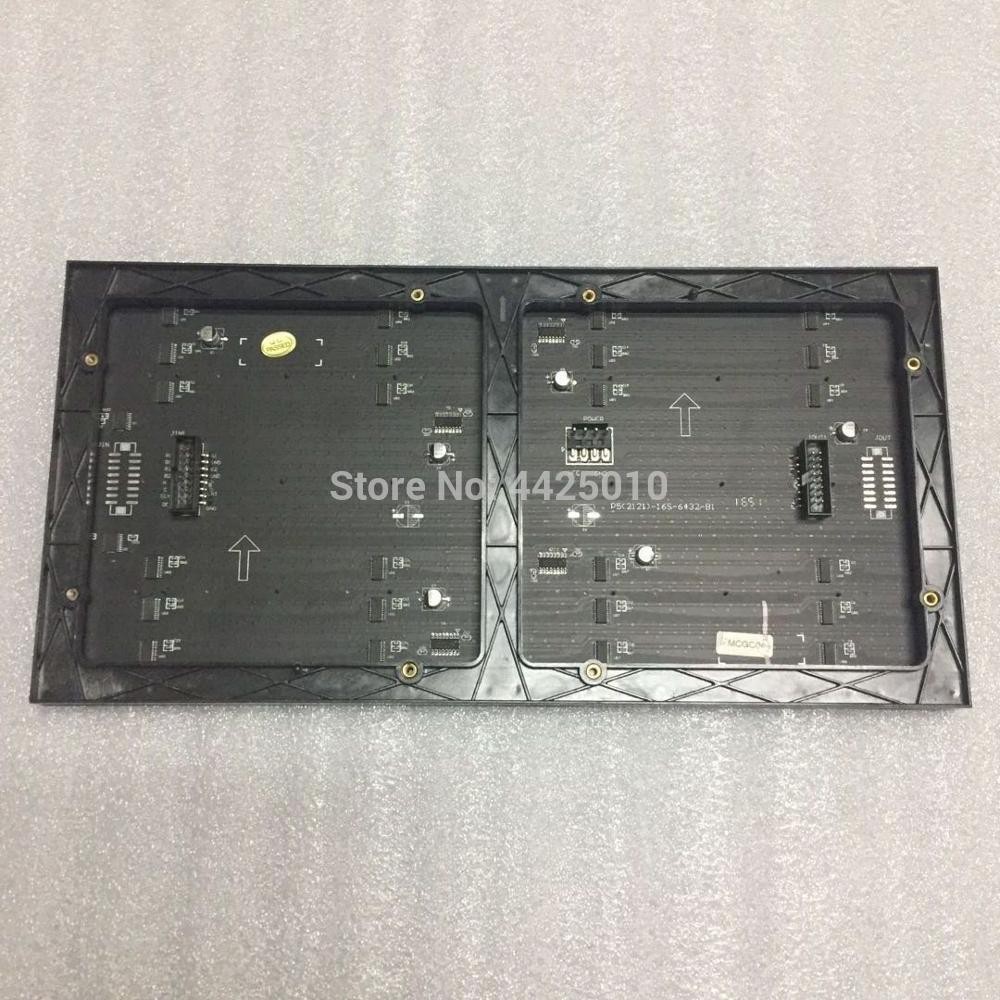

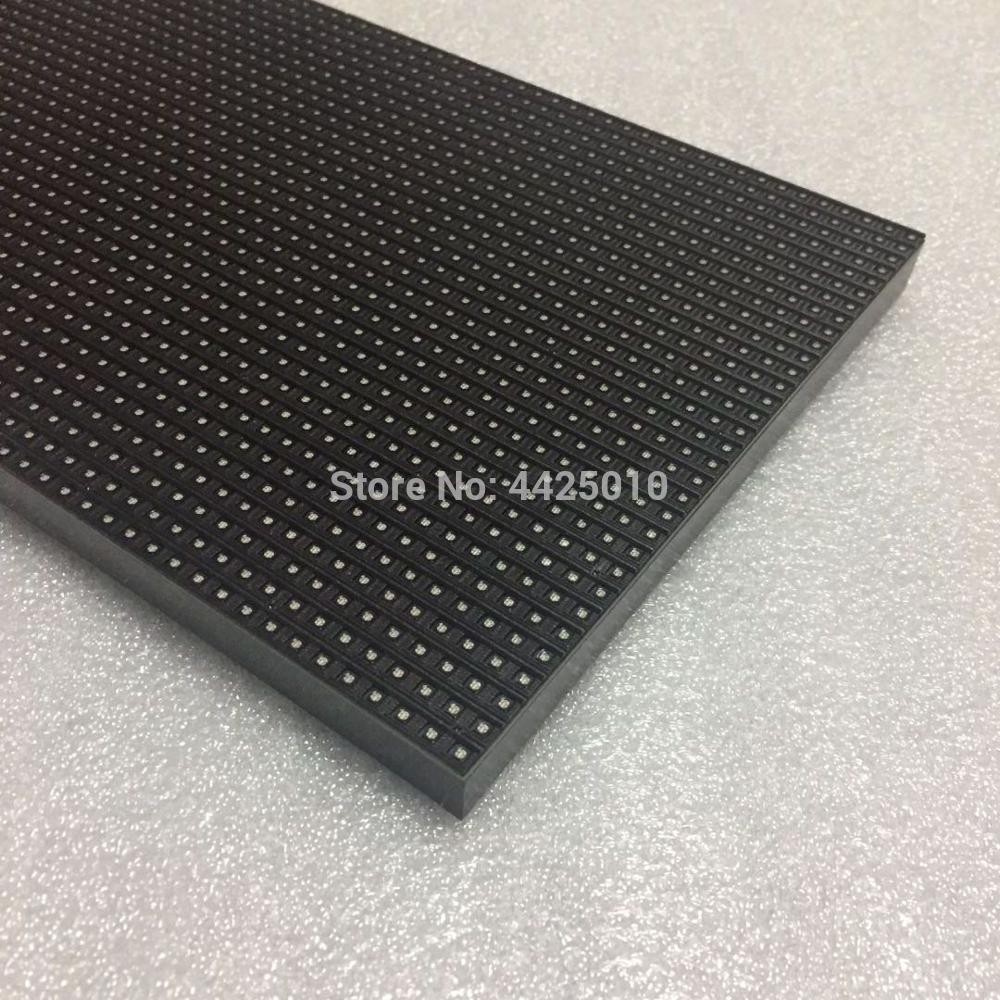

64*32pixels 1/16 Scan Indoor SMD2121 3in1 RGB full color P5 LED module for indoor LED display screen

0 people are viewing this product with you
NOW $68.00

SPECIAL OFFERS FOR THIS PRODUCT:

60 seconds to decide

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi

More details:

1. Product specification details

P5 SMD2121 320x160 1/16S

Item

    P5

Chip

    Epstar

Chip size

    Red 9 mil, Green 12. Blue 12mil

Light type

    SMD

Pixel Pitch

    5mm

Module Size

    320mmX160mm

Module Resolution

    64 X 32 (dots)

Density of pixel

    40000dots/m2

Pixel configuration

    1R1G1B

Red wavelength

    625±2nm

Green wavelength

    525±2nm

Blue wavelength

    470±2nm

Colors

    16777216

Best viewing distance

    ≥4m

viewing angle

    120°/90°

Maximum power consumption

    20W

Brightness

    2000cd/m2

Gray scale

    14bits per color

Color temperature

    6500k

Control method

 Synchronization or Asynchronization

Driving method

   1/16 scanning

Frame frequency

   60Hz

Refresh frequency

   ≥600Hz

Working Voltage

   DC5V

IP grade

   IP54

MTBF

   More than 8000hours

Life Span

   80,000hours



TIM20180707195115TIM20180707195257TIM20180707194927_20180707204847_20180707204832_20180707204824_20180707204819





2. Seamless splicing & Quick install

635693595720971305152

HTB1T81vLXXXXXbhXpXXq6xXFXXXI

HTB1Hc2vHVXXXXbMXXXXq6xXFXXX0

HTB1Vz5kLXXXXXc6XFXXq6xXFXXXN

HTB1QjyuSXXXXXcSaXXXq6xXFXXXt

HTB1D4YeSXXXXXcZXXXXq6xXFXXXY

QQ20171221140403

HTB1.g5fLXXXXXc5XVXXq6xXFXXXT

_20180410174508





3. Company Profile & Certificate



1). With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.

2). With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.

3).  With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.

4). Our products have passed many certifications and get the corresponding certificate.

 (1)

PRODUCT PROCESS (2)HTB1j61vNVXXXXc2XFXXq6xXFXXX5

CEFCCRoHS







4. Other saleable products



1). Flight case

HTB1HjSbLXXXXXbPaXXXq6xXFXXXy

HTB1USuqLXXXXXakXFXXq6xXFXXXE





2). Video processor & Control card

HTB17zZVajQnBKNjSZSgq6xHGXXaBHTB136toarArBKNjSZFLq6A_dVXaXIndoor-or-Outdoor-Linsn-RV908-receiving-Card-RV908T-HUB75-Full-Color-RGB-LED-screen-display-controlLINSN-TS802D-Sending-Card-Full-Color-LED-Video-Display-LINSN-TS802-Sending-CardNova-MSD300-LED-Display-Sending-Card-Full-Color-LED-Video-Display-Synchronous-Novastar-MCTRL300-Send-box





3). Other Accessories, etc.

LED-display-aviation-plug-cable-Indoor-cable-power-supply-and-signal-cable-P3-P4-P5-P6.jpg_640x640

One-lot-10pcs-led-display-data-cable-16p-short-cable-for-led-modules-indoor-outdoor-18cm.jpg_640x640



LED-Power-Supply-5V-60A-300W-200W-LED-Display-Power-Adapter-Switching-Input-AC110V-220V-toP3.91-indoor-LED-panel-500X500mm-aluminium-die-casting-cabinet-full-color-video-led-display







5. Delivery transportation



Shipping By Express

1). We Ship to Worldwide.

2). Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.

3). Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.

Packing_HTB1fJ8NMXXXXXc2XVXXq6xXFXXX5.jpg_.webp_









Large Orders Can By Sea

If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
