Description:
-

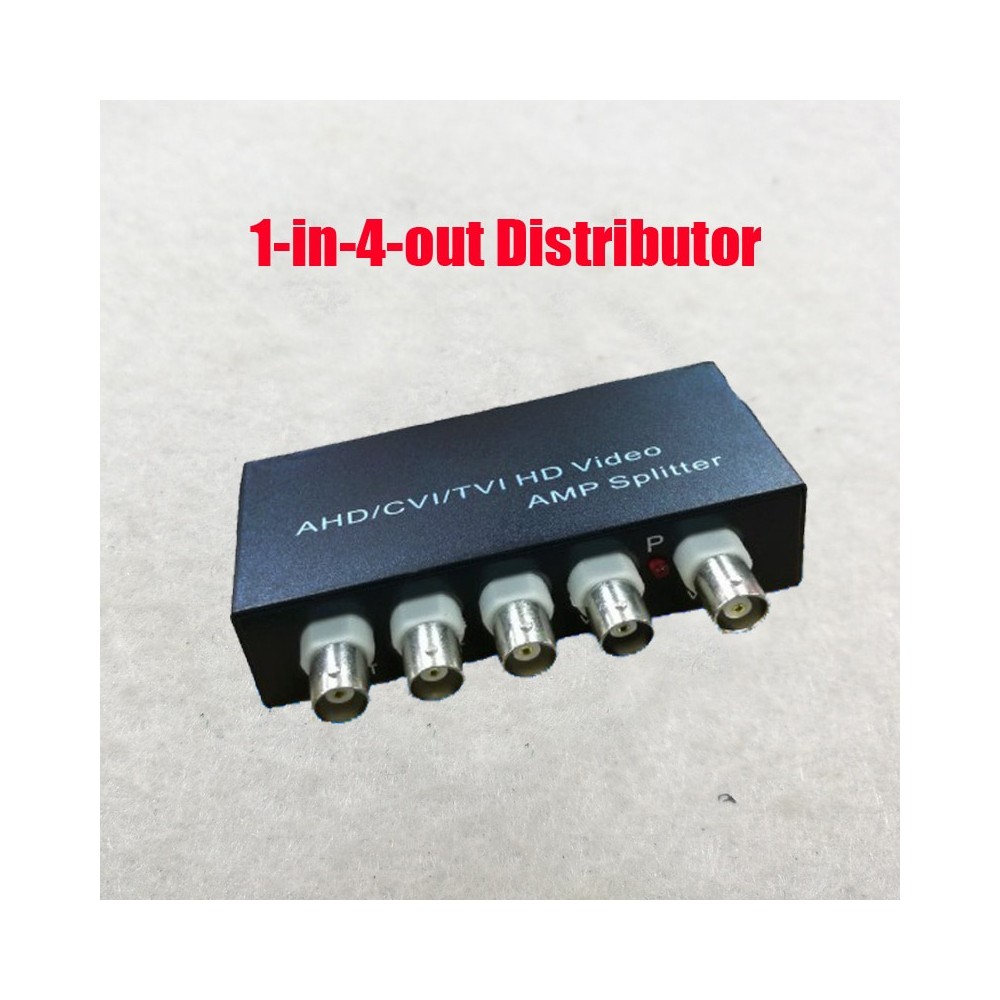

Video input:1* BNC
-
Video Output:4* BNC
-
Support :AHD/HDCVI/HDTVI Analog HD Video Splitter
-
Support Resolution:1280*720 or 1920*1080
-
Input&Output Length:input unlimited and output max to 300-600m
-
Place of Origin:Guangdong China(Mainland)
-

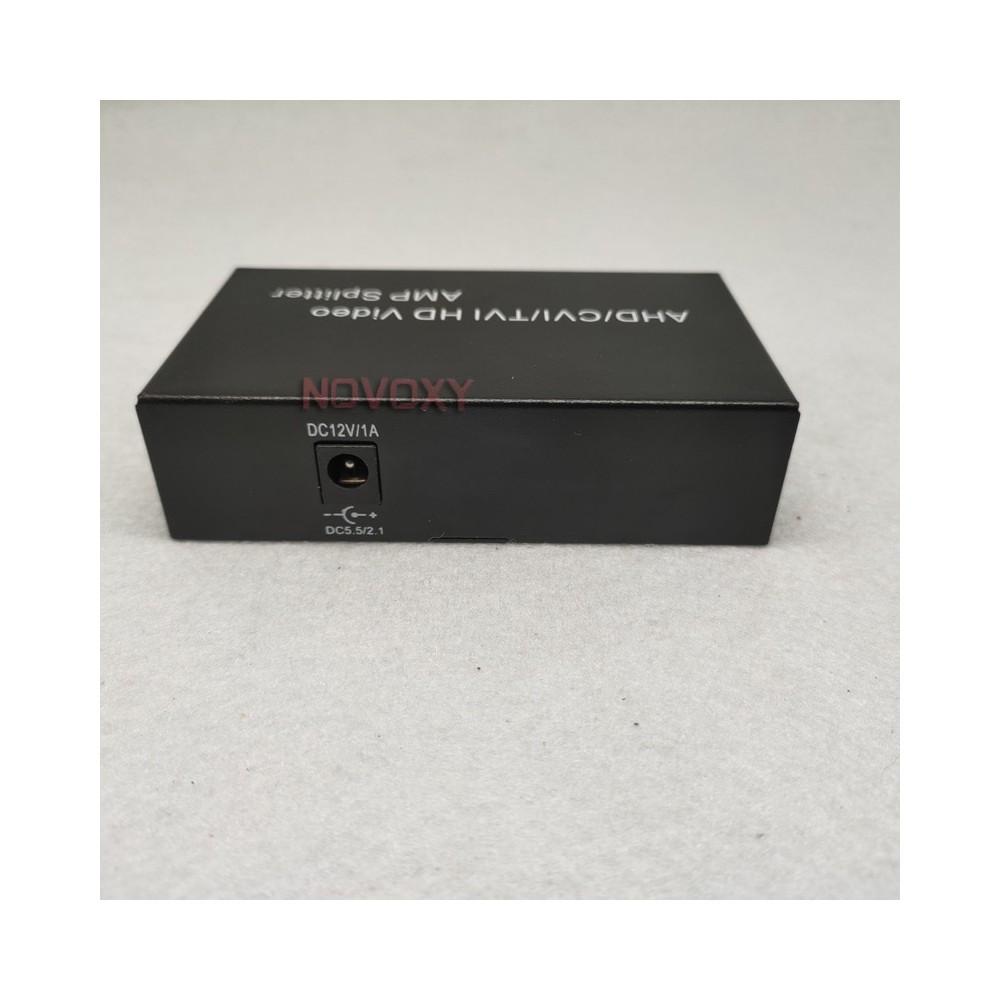

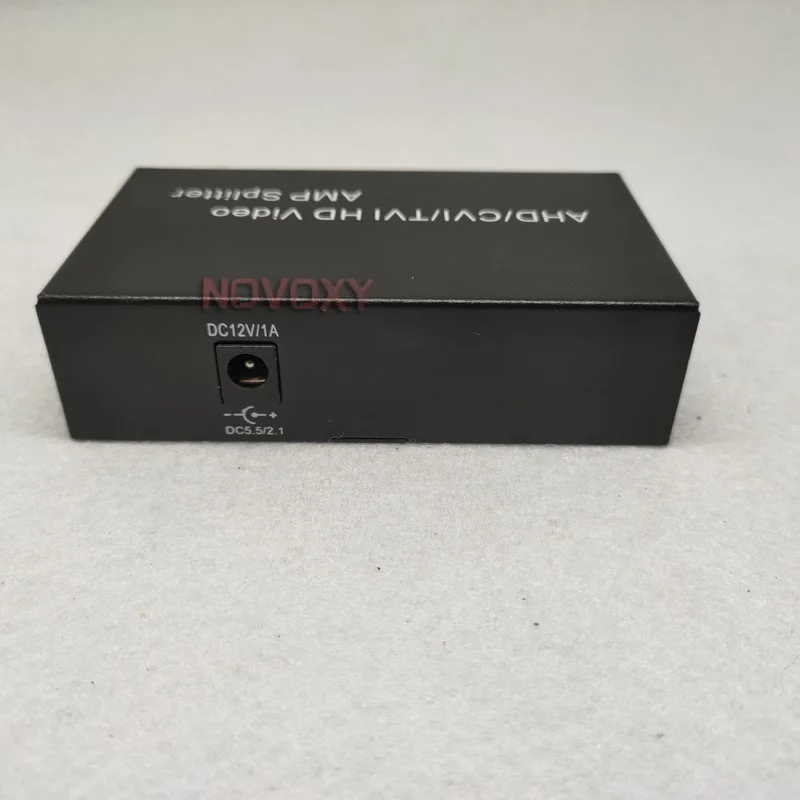

Power supply(input):jack 2.1*5.5mm,12V,1A(not include)
-
Material quality:Anti corrosion steel black
-

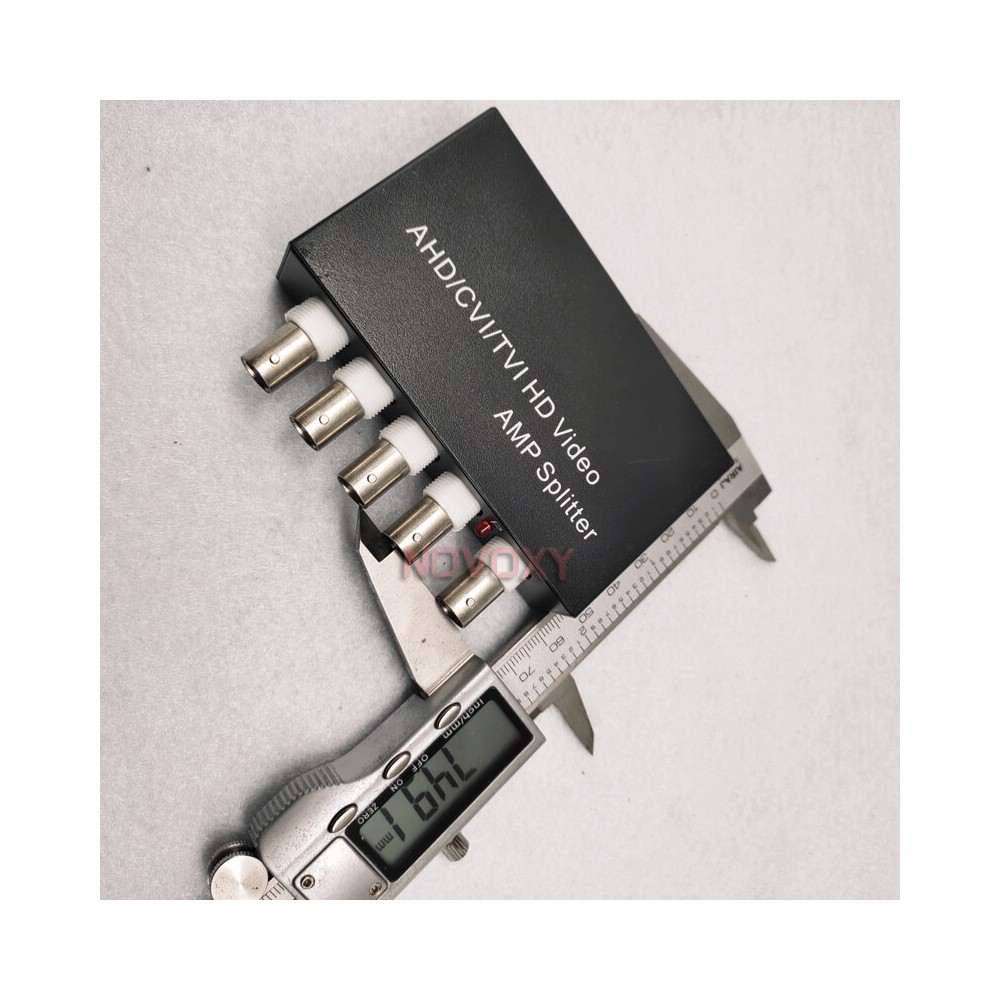

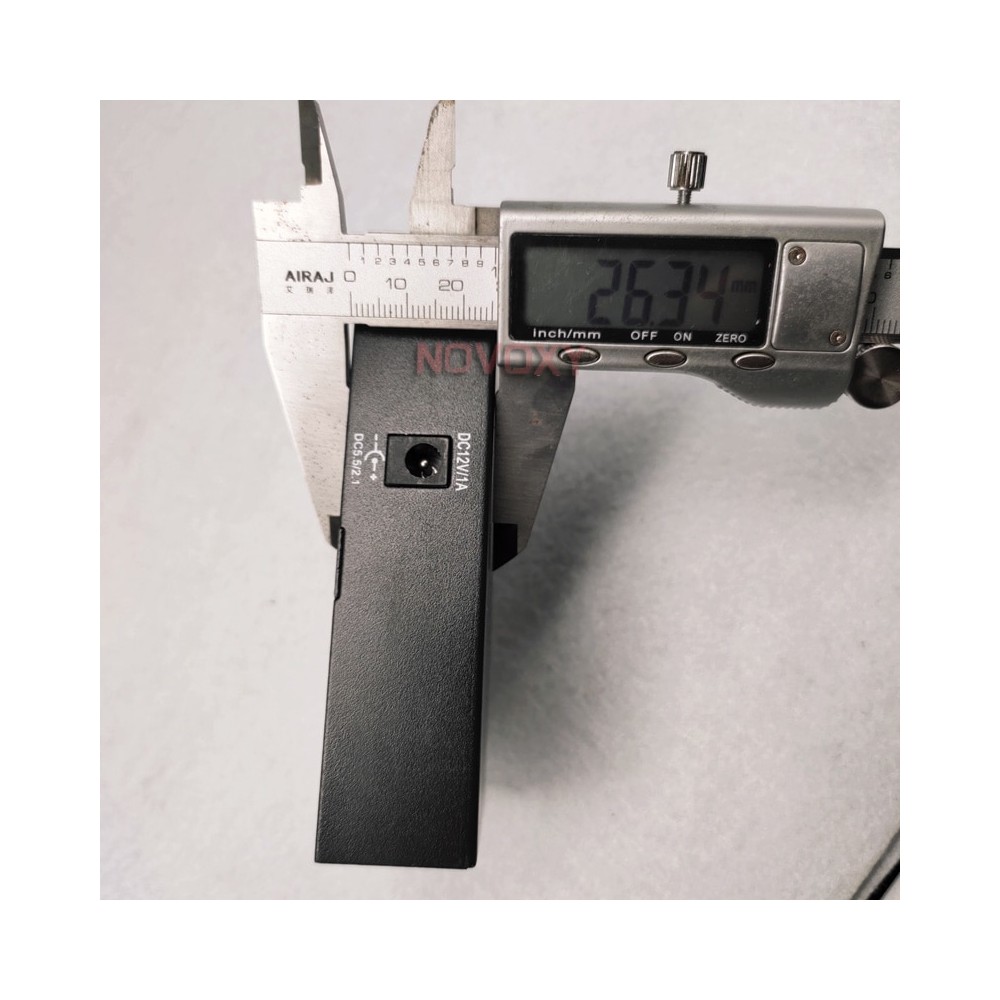

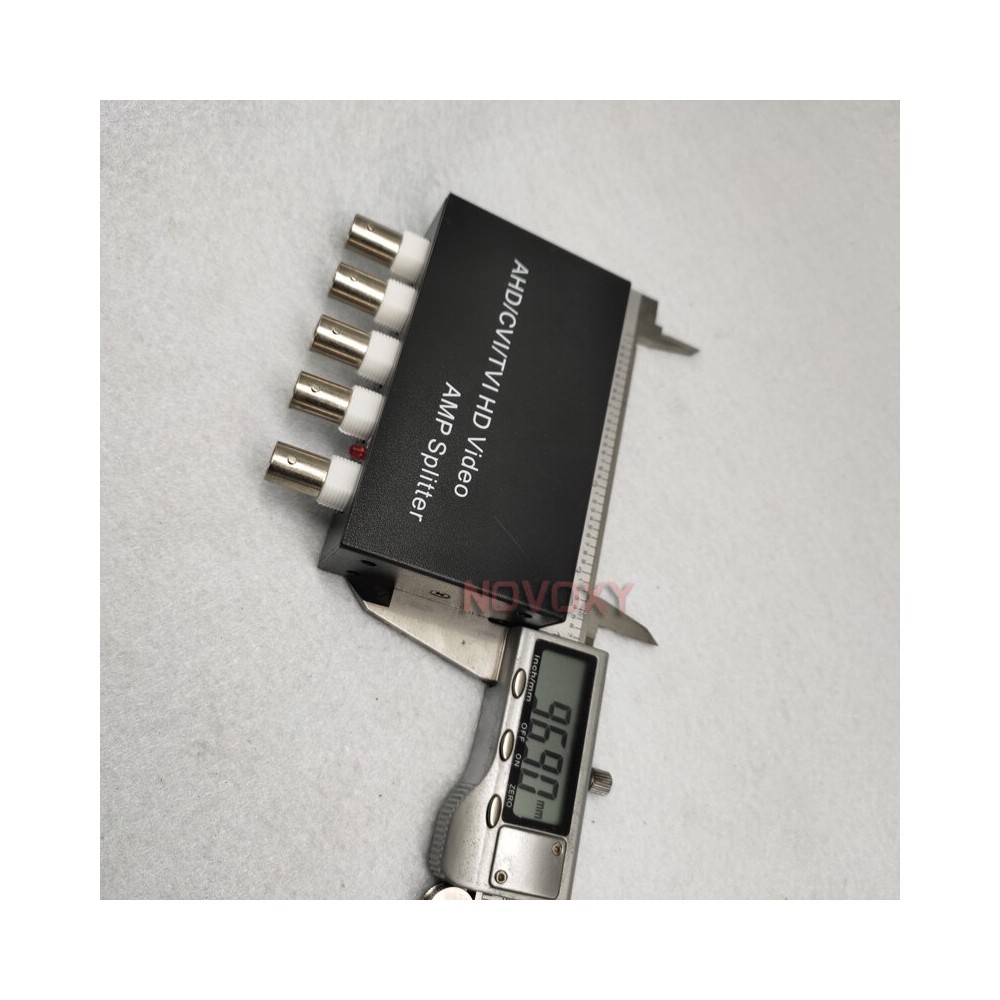

Size:140*100*25mm
Specifications:
1, 1.5GHz@-3dB AHD video signal amplification to active loop filter. Grain processing
2, Total copper silver plated BNC female head input - distribution amplifier output
3, Built in excellent ESD protection circuit, can work in the harsh environment of the pressure demanding.
4, High 92dB common mode noise suppression and 36dB high definition video signal.
5, high 388OV /uS transient response, unique analog HD video signal white balance clamp and wide dynamic compensation Matched filter circuit.
6, Input, solve the passive isolator and the infrared camera is not compatible with the problem.
7, Power LED independent indicator, a million high-definition AHD video brightness and contrast potrast potentiometer synchronous tracking compensation.
8, Broadcast - level 1 - 2 points (1 points 2+ 16 port and 2 4 + 16 ports can be customized)
9, +12V DC/ 1A low voltage power supply, ultra low power consumption, in line with the EU’s green energy standards
10, Can work at -45 to 85 for industrial grade temperature, no similar products common two power and temperature drift phenomenon.
11, Modular design 1 points 2 points 3 points 1 points 4 points 1 points 8 points (the specifications can be customized)
12, The whole machine input and output lightning surge protection, can work all day to complex engineering environment.
13, CE/FCC/ROHS international certification is compatible with the super strong EMI to suppress image stability and reliability.
Technical Parameters:
Support for 1280 x 720 and 1920 x 1080 resolution two, 25, 30, 50, 60 and four frame rate, 1280H/25f.
1280H/30f. 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f six kinds of HD format,.
Video images of the proportion of 16:9 standards.
Analog video transmission technology.
A progressive scan frame, transmission mode.
Using the coaxial cable as the transmission medium.
Supports audio coaxial transmission, transmission direction from the camera side to the receiving device side.
The highest audio signal can be supported by the sampling rate of 44.1kHz.
(1280H/25f is the highest 32KHz sampling rate.)
Support Coaxial two-way data communication, through the receiver to send control signals such as collecting end head rotation, zoom control.
Support the baud rate of 2400/4800/9600.(foward transmission support 2400/4800/9600,2400/4800.)
Automatic correction of the signal distortion of different transmission channels.
Product parameters:
|
Name
|
HD Video Splitter
|
Input Length
|
Unlimited
|
|
Goods number
|
1-4
|
Output Length
|
300-600M
|
|
Temperature
|
-15 to + 55
|
Power Supply
|
DC 12V
|
|
Humidity
|
5 to 90%
|
Material quality
|
Anti Corrosion Steel Black
|
|
Resolution
|
1280x720, 1920x1080
|
Size(mm)
|
140x100x25
|
|
Input Port
|
1 CH
|
Weight
|
0.35kg
|
|
Output Port
|
2 CH
|
Warranty
|
24 months
|
Pakage List:
1x Video distribotor
