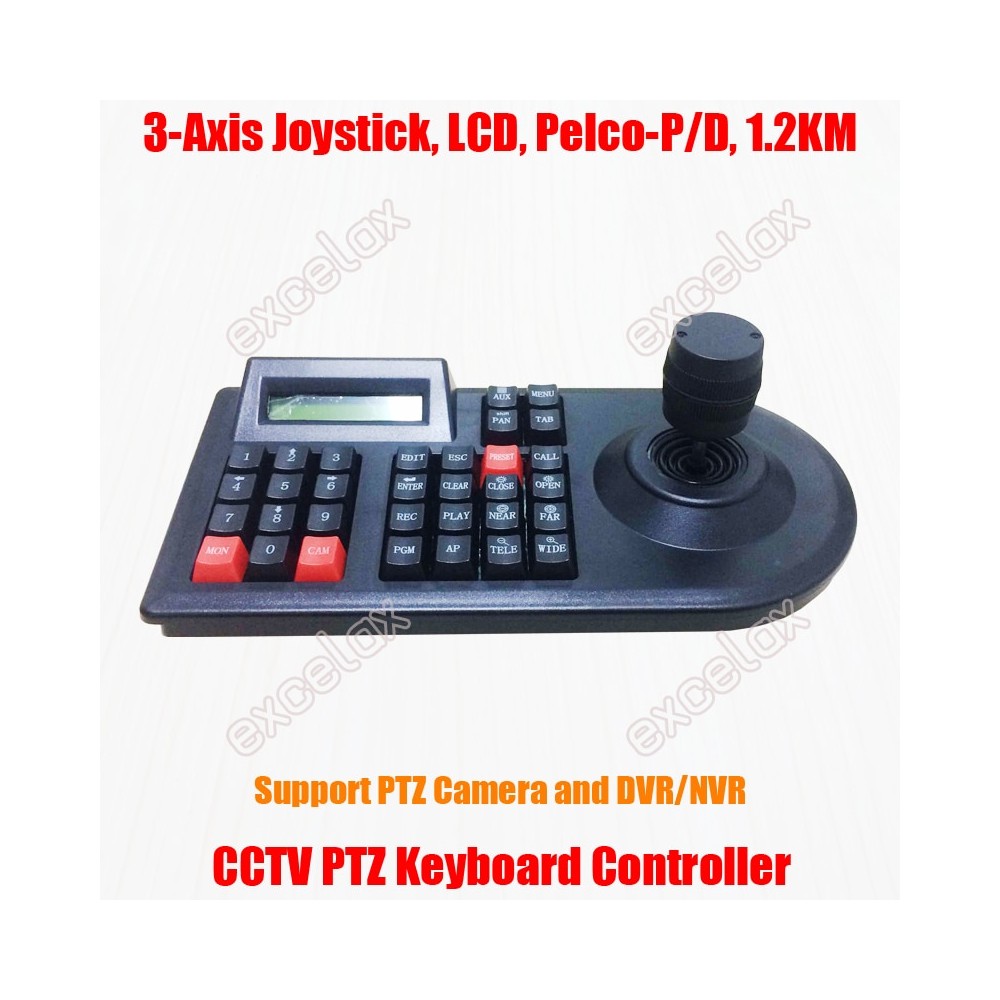

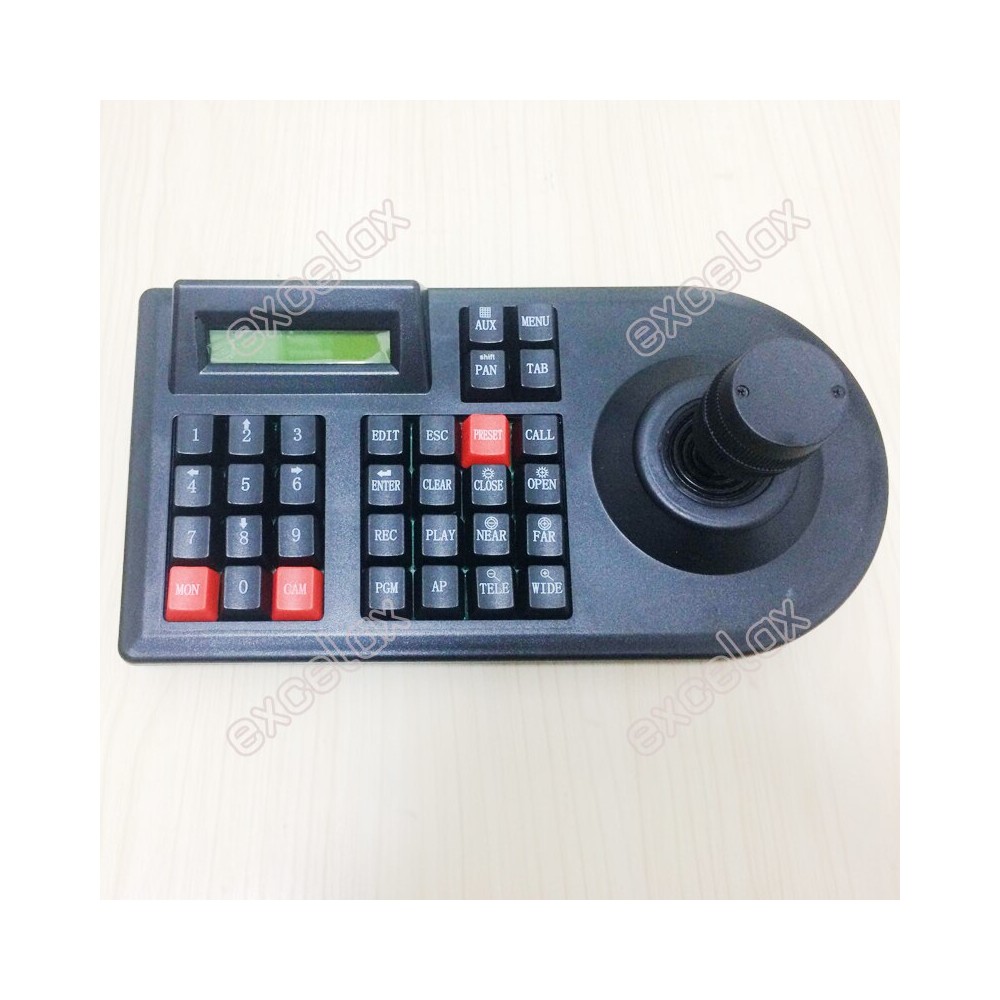

3D Axis Joystick CCTV Keyboard Controller
0 people are viewing this product with you
Loading...
Loading...
Loading...
Loading...
Loading...
NOW
$115.95
SPECIAL OFFERS FOR THIS PRODUCT:
60 seconds to decide
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi
More details:
3D Axis Joystick CCTV Keyboard Controller Keypad for Security PTZ Speed Dome Camera Decoder DVR NVR Pelco RS485 Pan Tilt Zoom
Notice:

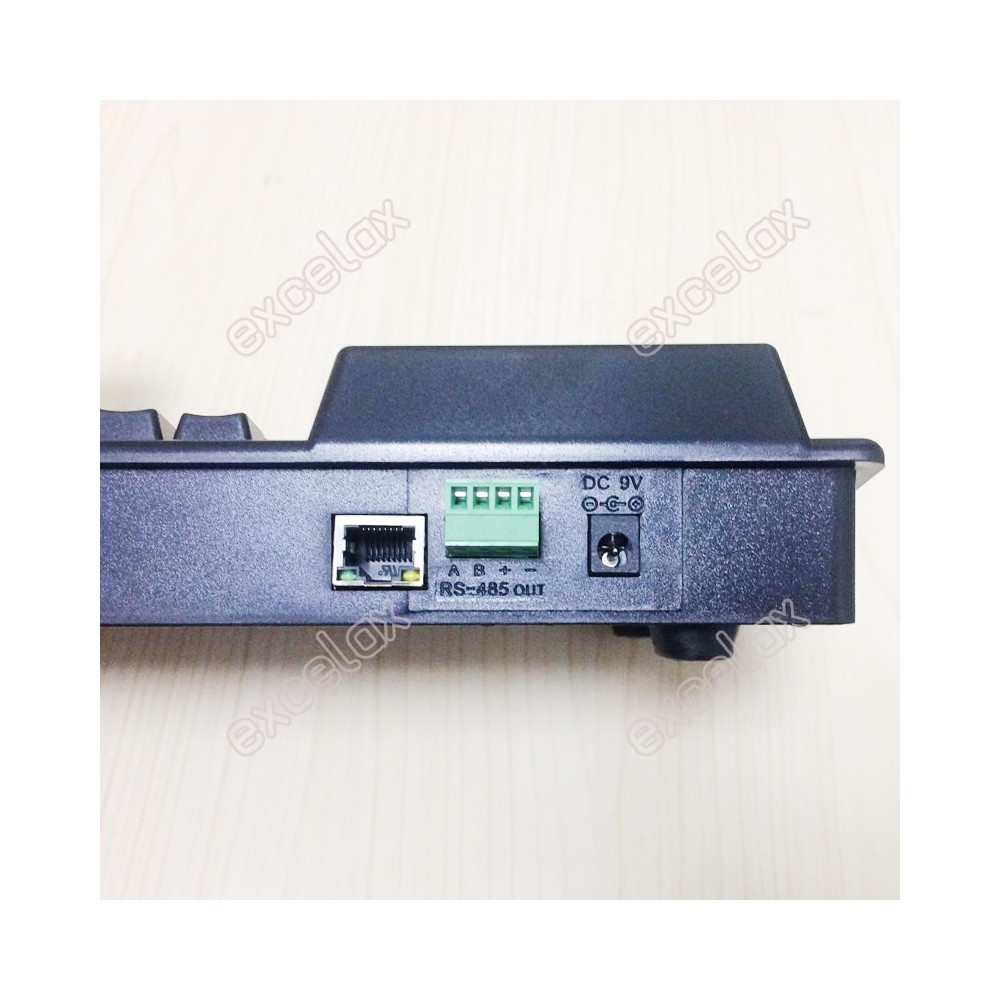

The RJ45 port is N/A currently and reserved for future function, NOT in use yet.
Features:
3-axis CCTV keyboard controller

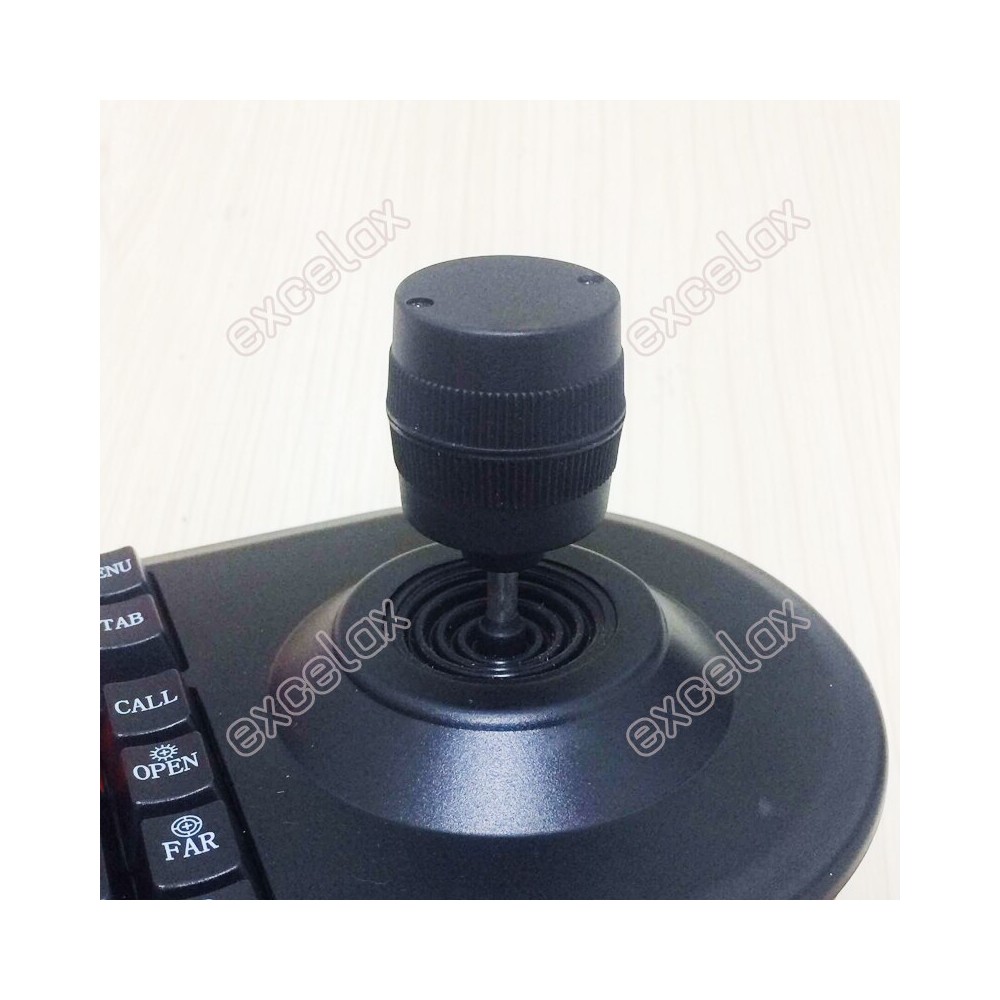

3D joystick for convenient pan/tilt/zoom control
Real-time display current control address and baud rate
Available to set device protocol, baud rate, address ID, etc.
RS485 BUS control
Support control over 16 units of DVR/NVR
Support sync control 64 units of PTZ camera and pan/tilt device
Support straight end decoder control to operate pan/tilt, lens, lights, rain brush, etc.
Lightning-proof communication interface design, excellent anti-interference performance
Standard transmission distance up to 1.2km (0.75mi)
Multiple protocols built in with better compability
LCD screen to display operate status
Support Hikvision, Dahua and Han Bang DVR and NVR
Specifications:
Communication Mode: point-to-multipoint half-duplex
Communication Port: RS485
Baud Rate: 1200/2400/4800/9600bps
Protocol: Pelco P/D
Joystick: 3-axis movement
Supported DVR/NVR: Hikvision, Dahua, Hanbang, etc.
Maximum Transmission Distance: 1.2km/0.75mi
Maximum DVR/NVR Supported: 16 units
Maximum PTZ Camera/Decoder Supported: 64 units
Power Input: DC 9~12V
Power Consumption: About 3W
Working Temperature: -20 ~ 50C degrees
Weight: About 0.6kg
Product Dimension: 265(L)x133(W)x93(H)mm (incl. joystick)

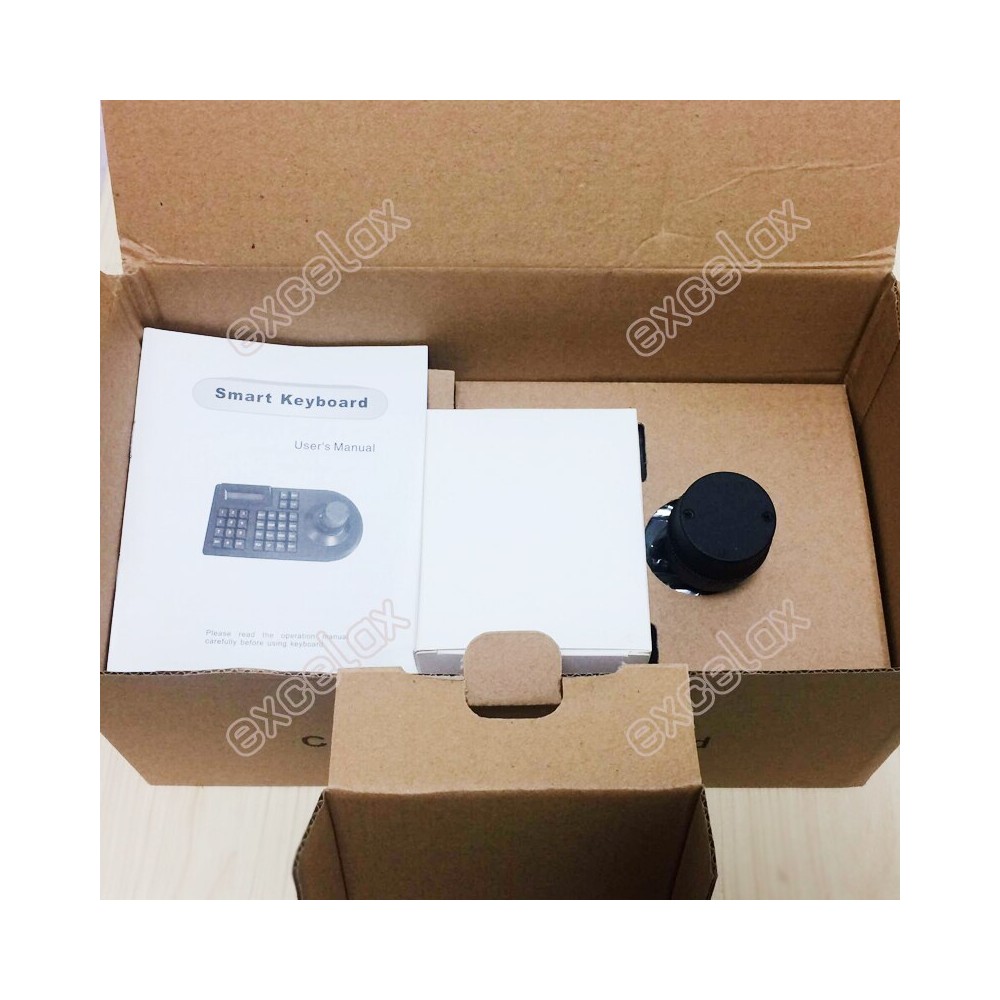

Package Content:
1x Keyboard Controller
1x Power Adapter (Default US/CN type power plug. Please leave message for EU/UK/AU type.)
1x User Manual
Tips:
1. Turn on/off key tone: 66+[PGM]
2. For other keyboard operations related to PTZ camera, pan/tilt scanner with decoder built in, decoder and other equipment, please refer to respective user manual.
Notice: The above RJ45 network port is N/A currently and reserved for future function, NOT in use yet.
