Dahua Original NKB1000 PTZ Controller

0 people are viewing this product with you

NOW $597.50

SPECIAL OFFERS FOR THIS PRODUCT:

60 seconds to decide

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aliquam eget pellentesque orci. Curabitur diam nulla, rutrum aliquam mi

More details:

Important notice ：

To avoid unnecessary troubles, the products and packages on the images we show are all have no logo, but the products are shipped with logo ., Please feel free to place your order ~!

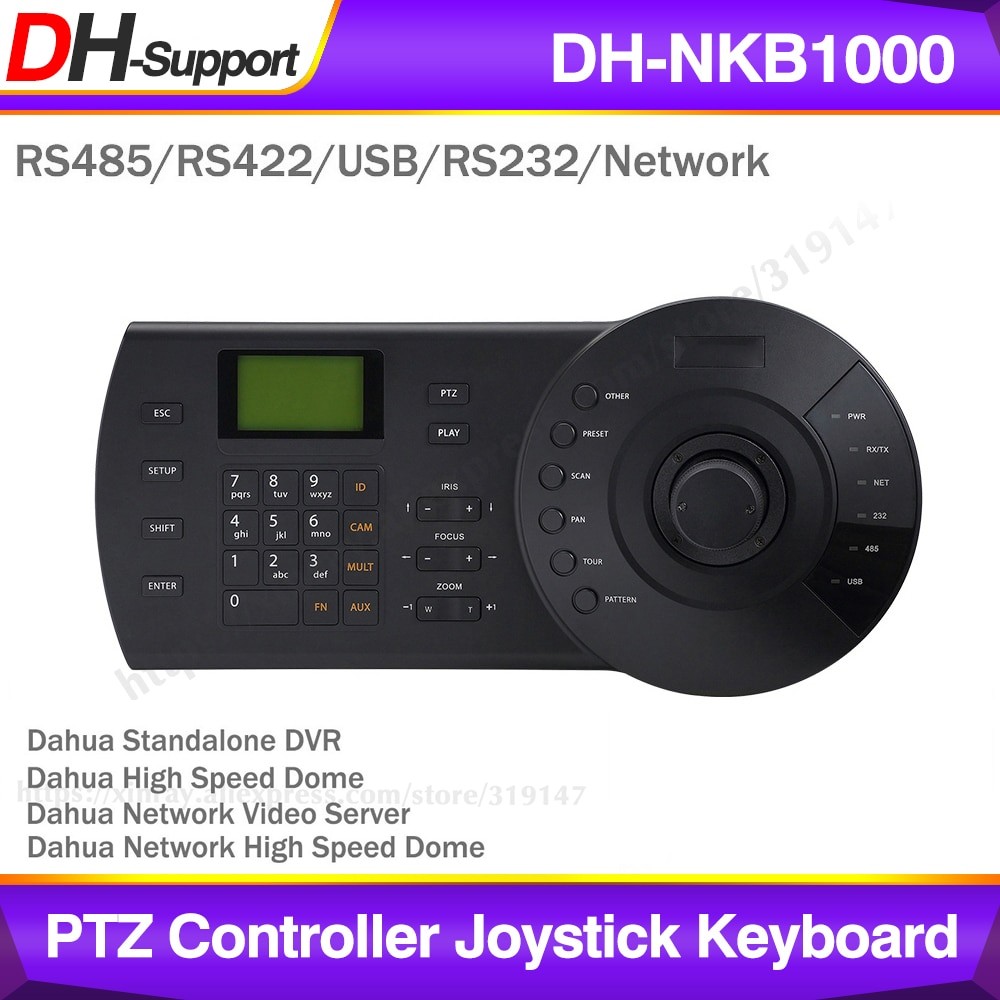

Dahua Original NKB1000 with logo PTZ Controller Joystick Keyboard For High Speed Dome Standalone Network Video Server RS485/422/232

***Since some special reason ,our store will stop useingall logo on the products. and you will not see any image with the logo .
But the products you buy still with logo as normal ,All products are original .***

1.This isDahua (China) originalCCTV parts , it support many kinds of Dahua devices in our store .

2.As different country has different shipping rules.We will choose the express method for you according to our experience. Besides,if your shipping cost is too high,Hope you kindly understand that we could not remove the shipping cost for you.

3.We didn't upload all the Dahua Accessories in our store .but we can offer all model if you need . jsut leave a message to me !

Network Keyboard & Control Keyboard & Dome keyboard

Keyboard to Control
> Dahua High Speed Dome
> Dahua Standalone DVR
> Dahua Network High Speed Dome
> Network Video Server

Connection
>RS485, RS422, USB, RS232 & Network

Functions
> Three Dimensional Joystick Control of PTZ Functions
> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions

Auxiliary Functions
> On-Screen Menu & User Operation Procedure Tips
> Connect to SmartPSS via USB

Model	NKB1000
General
Keyboard Key panel	Electromechanical
Joystick	3-axis, vector-solving, with twisting, return to-center head
Keyboard Connector	RJ-45, RS232, RS485, RS422, USB
Keyboard Communication	Direct Mode, Network Mode
Direct Mode	Interface: RS232/RS485
	DVR Protocol: Dahua 2
	Dome Protocol: Dahua -SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc
Network Mode	Interface: RJ45
	DVR/Network Dome:
	IP Address/Port/Protocol
Display	LCD, 75.2mm×33.85mm
Environmental
Power Supply	Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA
Power Consumption	5W
Working Temperature	-10°~+55°
Working Humidity	10% ~ 90%
Atmosphere Pressure	86kpa~106kpa
Dimension	330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm including joystick)
Weight	2.5kg (Including package)
